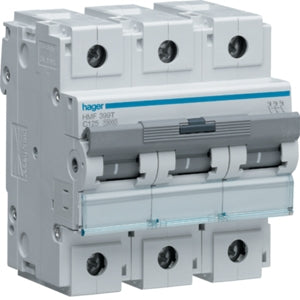

MCB 3P 100A 10kA 4.5M C-Curve

MCB 3P 100A 10kA 4.5M C-Curve

by Hager

Product Details

MCB 3P 100A 10kA 4.5M C-Curve. Connection Capacity: 25mm2 rigid, 16mm2 flexible. AS/NZS 60898

Hager's range of HMF MCB's are intended for protection and control of circuits against overloads and short-circuits use within commercial and light industrial premises. This range of MCBs offer new features, better connection, superior performance and increased levels of security.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Built-in depth
70 mm
Rated current
100 A
Rated voltage
415 V
Frequency
50 Hz
Release characteristic
C
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
4
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
3
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles
3 (Total: 3)
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
