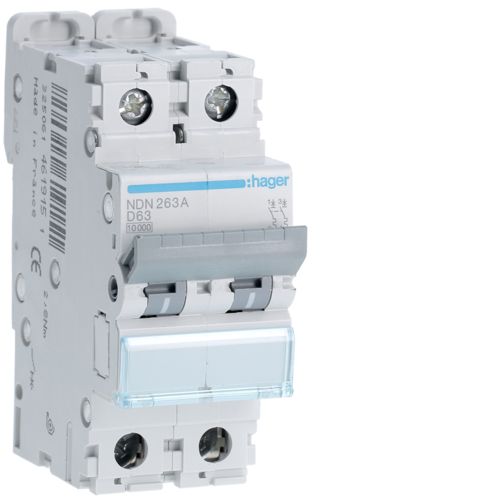

MCB 2P 63A 10kA D-Curve
Hager

MCB 2P 63A 10kA D-Curve

Ideal part number HAGNDN263A Manufacturer number NDN263A Barcode 3250614619151
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

MCB 2P 63A 10kA D-Curve Connection Capacity: 35mm2 rigid, 25mm2 flexible. AS/NZS 60898

Hager's range of NDN MCB's are intended for protection and control of circuits against overloads and short-circuits use within commercial and light industrial premises. This range of MCBs offer new features, better connection, superior performance and increased levels of security.

Technical specifications

Voltage type
AC
Built-in depth
70 mm
Rated current
63 A
Rated voltage
400 V
Frequency
50 Hz
Release characteristic
D
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
2
Concurrently switching neutral conductor
no
Additional equipment possible
yes
Number of poles
2 (Total: 2)
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
