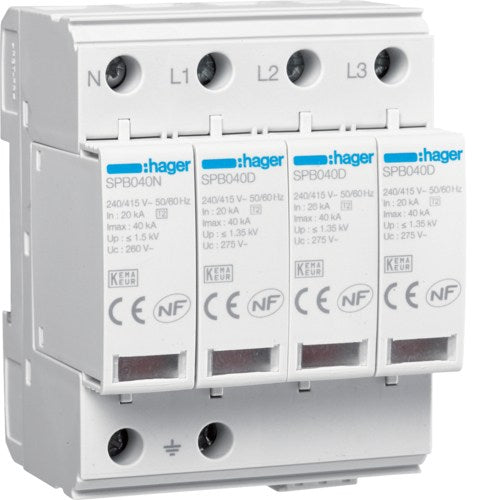

Surge Medium 4P T2 TNS/TT 40kA Remote contact
Hager

Surge Medium 4P T2 TNS/TT 40kA Remote contact

Ideal part number HAGSPB440R Manufacturer number SPB440R Barcode 3250615515599
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Surge Protection Device Medium 4P T2 TNS/TT 40kA Remote contact

Hager SPDs protect electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting and motors. These transients can cause anything from the premature aging of equipment and downtime, to the complete destruction of electronic components and materials.Surge protection devices are strongly recommended in sites that are exposed to transients, to protect sensitive and expensive electrical equipment such as TVs, washing machines, PCs,alarms etc

Technical specifications

Mounting method
DIN rail
With remote signalling contact
yes
Construction size
4 modular spacing
Voltage protection level
1 kV
Max. continuous voltage AC
275 V
Nominal discharge surge current
20 kA (8/20: 20)
Category type 2
yes
Voltage protection level L-N
1 kV
Signalling at the device
Optic
Degree of protection
IP20 (Ip: IP20)
Max. PV-voltage
0 V
Integrated backup fuse
no
Max. conductor cross section solid
35 mm² (Solid, stranded: 35)
Max. conductor cross section flexible
35 mm² (Fine-strand: 35)
