T/Former Bell 8VA

T/Former Bell 8VA

by Hager

Product Details

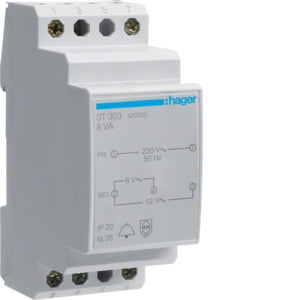

Transformer Bell 8VA

When a bell transformer is installed in an enclosure with mains voltage equipment, 230V cable should be used on the secondary side of the transformer or extra low voltage cable should be sheathed within the enclosure
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Width
35 mm
Height
65 mm
Type of transformer
Standard bell ringing transformer
Modular version
yes
Max. output current
1000 A
Length
111 mm
Max. output power
8 W
Width in number of modular spacings
2
Short-circuit protected
yes
Primary voltage
230 V
Secondary voltage 1
8 V
Secondary voltage 2
12 V
Secondary amperage 1
1 A
Secondary amperage 2
0 A
Temperature protection
yes
Max. power loss
2 W
