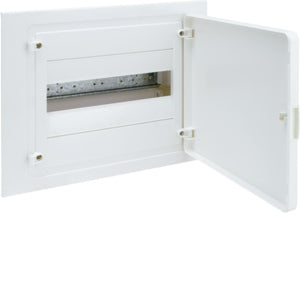

Dist Board 12 Way 1 Row Flush VS Lite White
Hager

Dist Board 12 Way 1 Row Flush VS Lite White

Ideal part number HAGVF112PT Manufacturer number VF112PT Barcode 3250616464858
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Flush Distribution Board 12 Pole IP40 Complete With Door. White

Flush Mounted Enclosures Suitable for all Hager Modular Circuit Protection and for devices up to 70mm installation depth. Door can be fitted on right or left, optional lock and keys. Door opens up to 180º. 125mm between DIN rails.

Technical specifications

Mounting method
Flush mounted
Colour
White
Width
352 mm
Height
293 mm
Depth
97.5 mm
RAL-number
9010
With mounting plate
no
Built-in depth
72 mm
Number of rows
1
Type of covering
Door
Extension possible
yes
Inner depth
97.5 mm
DIN-rail
yes
Housing material
Plastic
Width in number of modular spacings
12
Degree of protection
IP40 (Ip: IP40)
Transparent cover/door
no
With lock
no
Cover model
Closed
