Switch Mech 32A 1Way Only Marked RANGE Matt White

Switch Mech 32A 1Way Only Marked RANGE Matt White

by Hager

Product Details

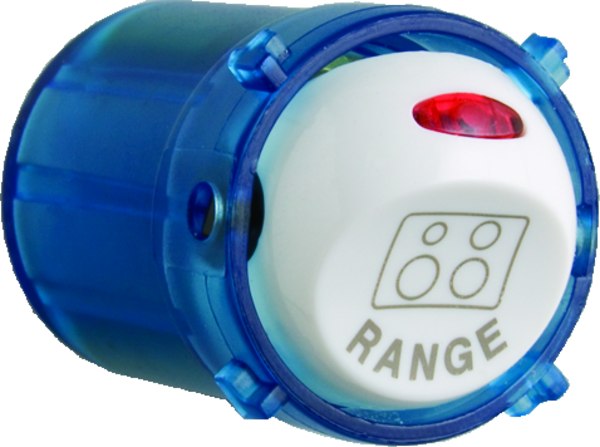

Switch Mechanism 32 Amp 1 Way Labelled RANGE Matt White

Hager RotoLoc mechanism. Rear Housing Colour Coded for Easy recognition of Type. Combination Phillips No. 1 terminal Screws and backed off. Easy Removal
Request a quote for this product

Enter details to request a quote

Technical Specifications

Nominal voltage
250 V
Mounting method
Flush mounted
Assembly arrangement
Basic Element
Method of operation
Rocker
Colour
Matt White
With mounting plate
no
Connection type
Screw Terminal
Illumination
No
Rated current
32 A
Material
Plastic
Type of fastening
Clip-in - RotoLoc
Wiring system
1 Way Switch
Number of rockers
1
Switching current for fluorescent lamps
25 AX
Push button switch
no
Surface finishing
Matt
Suitable for degree of protection
IP20 (Ip: IP20)
Device width
27 mm
Device height
27 mm
Device depth
31 mm
Label space/information surface
Range
