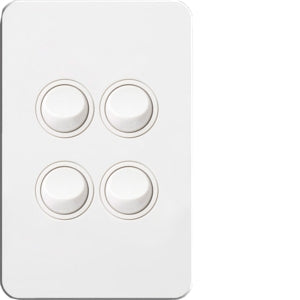

Silhouette Switch 4 Gang Vertical 16AX White

by Hager
Ideal Part Number HAGWBSSV4 Manufacturer Number WBSSV4 Barcode 3250617580779

Product Details

Silhouette Switch 4 Gang Vertical 16AX White

Slim switches & sockets that blend into the wall have been a demand in the electrical industry for many years. Silhouette has excelled in meeting this demand thanks to a thickness of only 4mm off the wall surface. The silhouette range follows the new Hager design philosophy – the design intention is to create meaningful, simple but elegant forms based on the serene balance of proportions and the reduction to the object essentials (no overdesign), giving the product the right tone of voice in order to fit in its environment.
Request a quote for this product

Enter details to request a quote

Technical Specifications

Nominal voltage
250
Mounting method
Flush mounted
Assembly arrangement
Basic element with full cover plate
Method of operation
Rocker
Colour
White
With mounting plate
yes
Connection type
Screw Terminal
Rated current
16
Material quality
Polycarbonate (PC)
Type of lighting
without lighting (cannot be illuminated)
Material
Plastic
Type of fastening
Screw mounting
Wiring system
2 Way Switch
Number of rockers
4
Switching current for fluorescent lamps
16
Push button switch
no
Suitable for degree of protection (IP)
IP20
Label space/information surface
without labelling field
Nominal voltage (unit)
V
Rated current (unit)
A
Switching current for fluorescent lamps (unit)
AX
