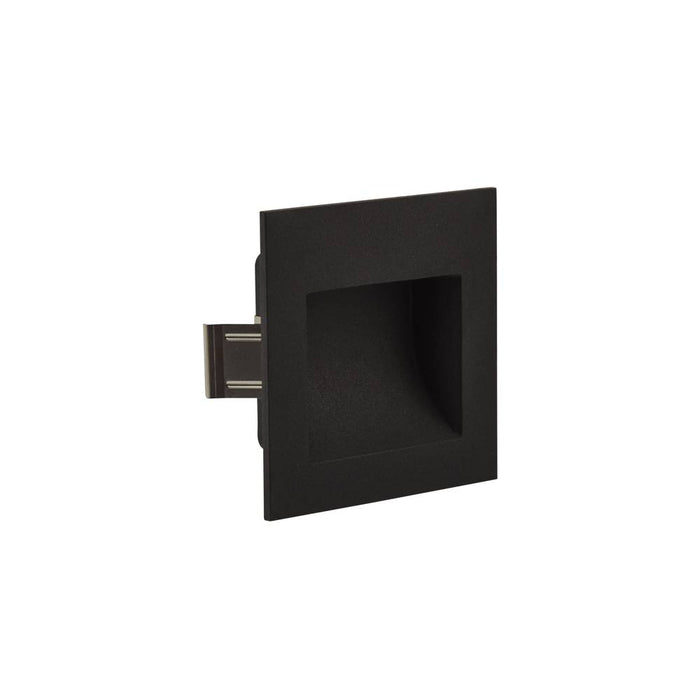

Ext Recess Wall Stair Tread Sq IP65 3w 24VDC CV Black
Halcyon

Ext Recess Wall Stair Tread Sq IP65 3w 24VDC CV Black

Ideal part number HALEX901B3 Manufacturer number EX901 B3 Barcode 9421031584634
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Ext Recess Wall Stair Tread Square IP65 3w 24V Black

3W. 160 lumens. 24V Constant Voltage. L90 x W90 x D36mm - Concrete housing: L83 x W83 x D66mm. 72 x 72mm cut out (83 x 83mm if using housing). 2700K Ultra Warm White. 40000hr lifespan. 120° beam angle. IP65. IC Rated. Driver not included, Current draw 0.13A per fitting. Interior / Exterior recessed wall, comes complete with plastic housing accessory for concrete installation. 5 Year Warranty. Matte Textured Black.

Technical specifications

Width
90 mm
Housing colour
Black
Type of control gear
LED CV Driver
Colour rendering index CRI
80
Built-in width
83 mm
Length
90 mm
Lamp type
LED
Built-in length
83 mm
Nominal voltage
24 V
Degree of protection
IP65 (Ip: IP65)
With control gear
no
Colour temperature
2700 K
Rated luminous flux according to IEC 62722-2-1
160 lm
Colour of light
White
