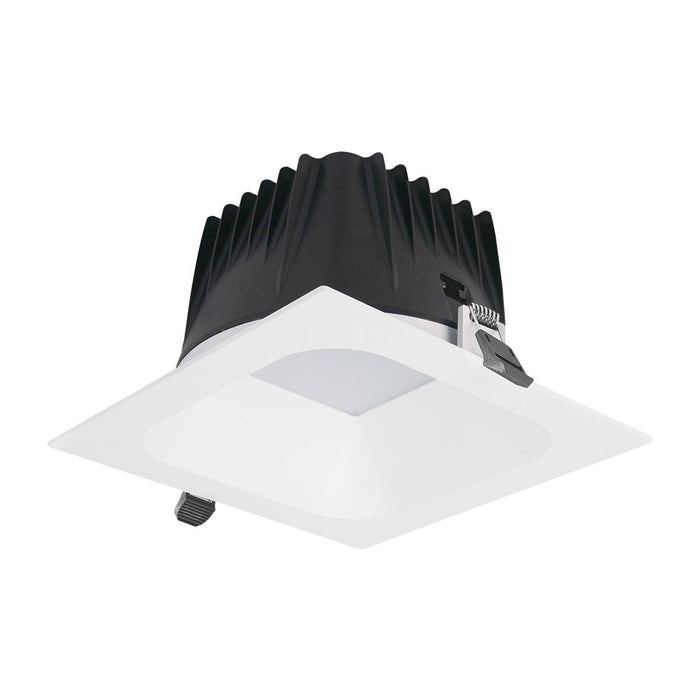

Downlight Sq Large 26W CCT White
Halcyon

Downlight Sq Large 26W CCT White

Ideal part number HALR743W34 Manufacturer number R743 W34 Barcode 9421035203289
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Downlight Square Large 26Watt CCT 3000K/4000K White, Low Glare. Driver not included.

The R743 commercial down light is colour selectable 3000K or 4000K and low glare. It can be run on either 700mA or 500mA constant current driver. When run on a 500mA driver the wattage and output decrease to 18.5Watt and 2230lm on 3000k and 2320lm on 4000k.

Technical specifications

Width
212 mm
Housing colour
White
Suitable for lamp power
26 W
Colour rendering index CRI
90
Length
212 mm
Height/depth
120 mm
Housing material
Aluminium
Lamp type
LED
Degree of protection
IP54 (Ip: IP54)
With control gear
no
Built-in diameter
200 mm
