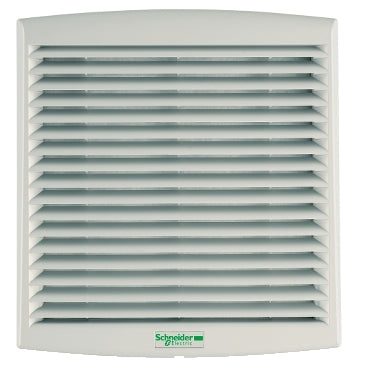

Fan Grill and Filter 230V 137 x 117 x 49mm
Himel Enclosures

Fan Grill and Filter 230V 137 x 117 x 49mm

Ideal part number HMLCVF38M230PF Manufacturer number NSYCVF38M230PF Barcode 3606480151163
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

ClimaSys forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 4.5 W 50 Hz, 4.8 W 60 Hz. Free flow rate with standard filter of 38 m3/h at 50 Hz and 39 m3/h at 60 Hz. 137 x 117 x 49 mm. Cut-out dimensions of 92 x 92 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
