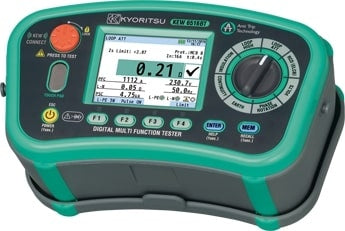

Installation Tester Multi Function with Bluetooth
Kyoritsu

Installation Tester Multi Function with Bluetooth

Ideal part number KYO6516BT Manufacturer number 6516BT
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Installation Multi Function Test Meter with Bluetooth. Cat1V 300v, CatIII 600V.

The KEW 6516/ KEW 6516BT Multi-Function tester has eight test functions in one instrument._x000D_ _x000D_

  • Continuity test_x000D_
  • Insulation resistance test_x000D_
  • Loop impedance test (High current measurement, No trip (ATT) _x000D_ measurement) 4 Prospective short circuit current test (On Loop impedance_x000D_ function)_x000D_
  • RCD test_x000D_
  • Voltage test_x000D_
  • Phase rotation test 8 Earth test


The KEW 6516 tester incorporates Anti Trip _x000D_ Technology (ATT) which electronically bypasses RCDs when performing loop_x000D_ impedance tests. This saves time and money by not having to take the _x000D_ RCD out of the circuit during testing and is a safer procedure to _x000D_ follow._x000D_ _x000D_

With the ATT function enabled, a test of 15mA or less is applied _x000D_ between line & earth. It enables loop impedance measurements without_x000D_ tripping RCDs rated at 30mA and above.
