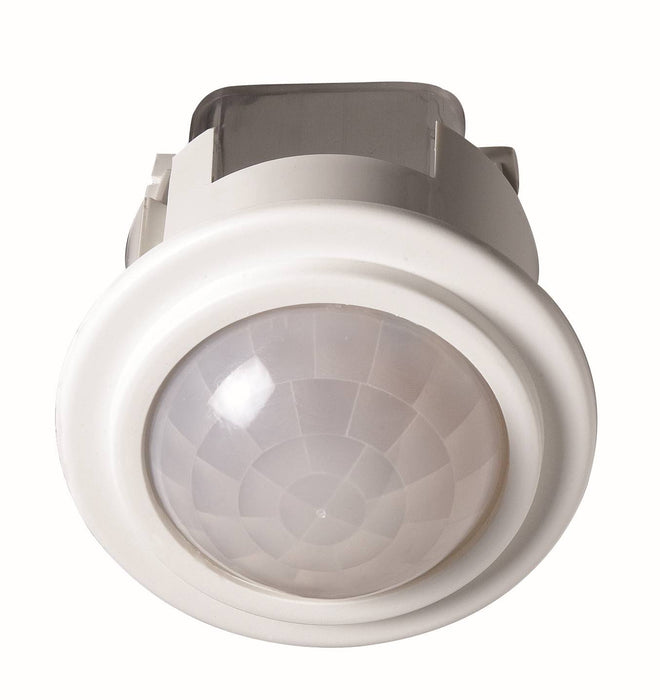

PIR Presence Detector Internal IP20 360Deg White
LED Group Robus

PIR Presence Detector Internal IP20 360Deg White

Ideal part number LGR1370017732 Manufacturer number RR360-01 Barcode 5391370017732
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Robus Proton PIR Presence Detector Internal Recessed IP20 360Deg White

  • Suitable for recessed indoor applications.
  • Injection moulded ABS body - impact resistant.
  • Clear terminal cover, integral clamp and large mains terminals for 2 x 1.5mm² conductors. Terminations are safe and visible and enables loop-in/loop-out for supply to other sensors.
  • Passive infra red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering.
  • Detection range 360°, detection distance 9m at 2.8m mounting height.
  • Adjustable time delay of 5sec to 15min ensures that lighting is switched off with required delay.
  • Adjustable lux setting of 2lx to 2000lx.
  • LED load max 300W. Fluorescent load max 600W. Resistive load max 2000W

Technical specifications

Colour
White
