PIR Presence Detector Universal IP20 360D Recess/Surface Wh
LED Group Robus

PIR Presence Detector Universal IP20 360D Recess/Surface Wh

Ideal part number LGR1370039505 Manufacturer number RU360-01 Barcode 5391370039505
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

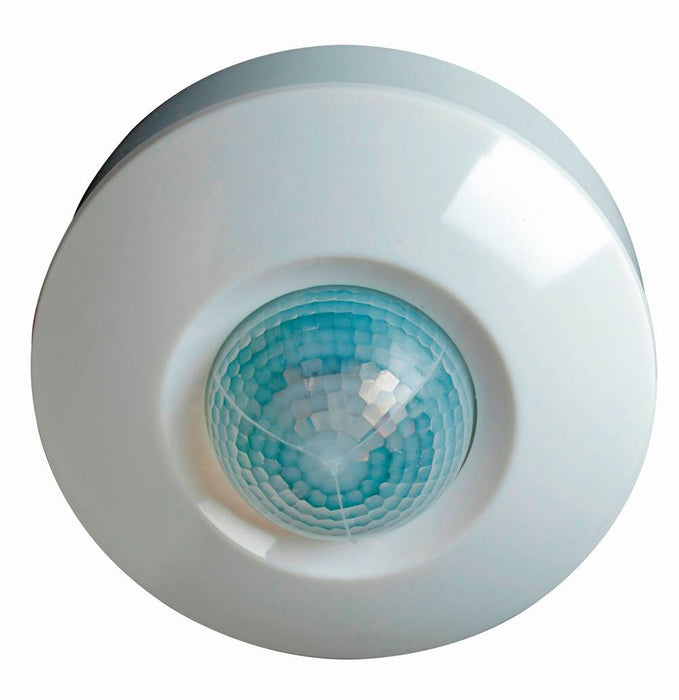

Robus Proton PIR Presence Detector Universal IP20 360D Recessed IP20 or Surface Mounting IP44 White Detection Distance 10m at 2.8m Mounting Height

  • Suitable for both surface and recessed indoor applications.
  • Injection moulded ABS body - impact resistant.
  • Plug in terminal block and sensor module. Large terminals accept 2 x 1.5mm² conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings.
  • Adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay.
  • Adjustable lux setting of 10 to 2000lx.
  • Detection range 360°, detection distance 10m at 2.8m mounting height.
  • Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering. Adjustable passive photocell; inhibits switching where natural light is sufficient.
  • High load contact rating; allows numerous fittings to be switched. Maximum LED load of 300W. Maximum Fluorescent load of 600W. Maximum Resistive load of 2000W.
  • IP rating: surface mounted IP44, recessed IP20

Technical specifications

Colour
White
