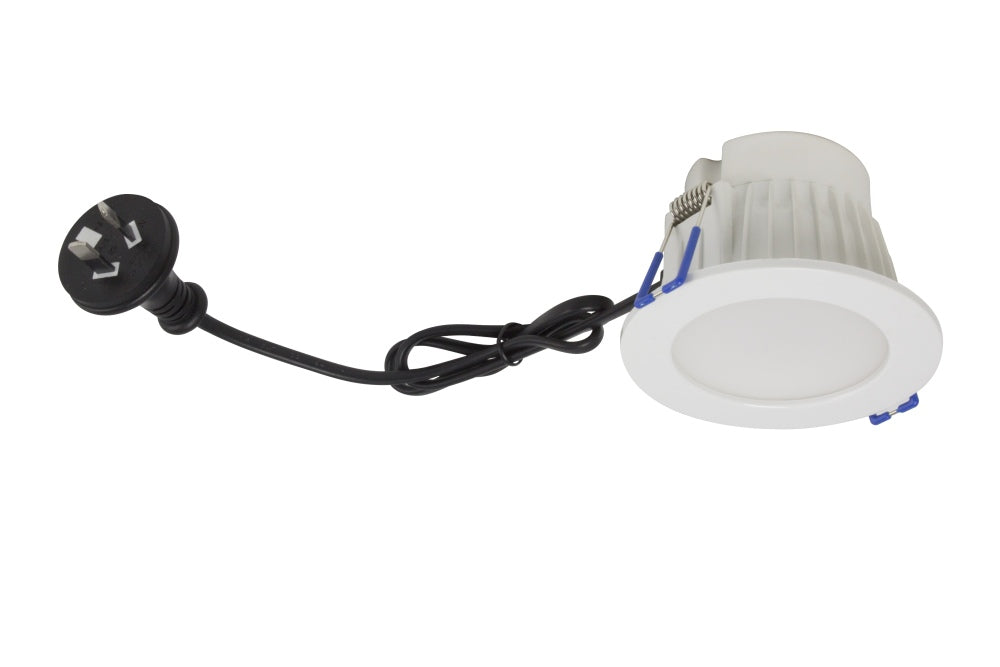

Taylor Downlight RC10 10W 125mm Cut Out 3CCT Dim Wh F&P
LED Group Robus

Taylor Downlight RC10 10W 125mm Cut Out 3CCT Dim Wh F&P

Ideal part number LGR1370075121 Manufacturer number RC10WDLCCT4-01 Barcode 5391370075121
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Robus Taylor 10Watt CCT Selectable LED Downlight, 3000K, 4000K, 5000K, 6500K, IP44, Dimmable, White, Flex&Plug

  • Suitable for use in offices, retail shops, reception areas, hotels, restaurants, bars & clubs, showrooms.LED replacement for 100W Incadescent downlight.
  • Integrated driver prewired with 0.6m of flex and plug.
  • White trim included. Black (RC125TRIM-04), Brushed Chrome (RC125TRIM-13) and Silver (RC125TRIM-15) trim available as accessories.
  • High efficacy of 102-113lm/W.
  • Wide operating ambient temperature range of -20°C to +40°C.
  • Switch on the back of the fitting allows CCT changing between 3,000K, 4,000K, 5,000K and 6,500K.
  • Compatible with most TRIAC dimmers

Technical specifications

Protection class
II
Outer diameter
136 mm
Housing colour
White
Surface protection
Untreated
Voltage type
AC
Colour rendering index CRI
80-89
Height/depth
70 mm
Lamp type
LED not exchangeable
Impact strength
IK05
Nominal voltage
220,240 V
Degree of protection
IP44 (Ip: IP44)
Colour temperature
3000,6500 K
Max. system power
9 W
Adjustability
not adjustable
Luminous flux
1020,1070 lm
Rated life time L70/B50 at 25 °C
30000 h
Total harmonic distortion
0
Rated ambient temperature according to IEC 62722-2-1
-20,40 °C
Dimming phase cut-off
yes
Dimming phase cut-on
yes
No dim function
no
Luminaire efficacy
113 lm/W
Colour of light adjustable
Positions
Built-in diameter
125 mm
Power factor
0
