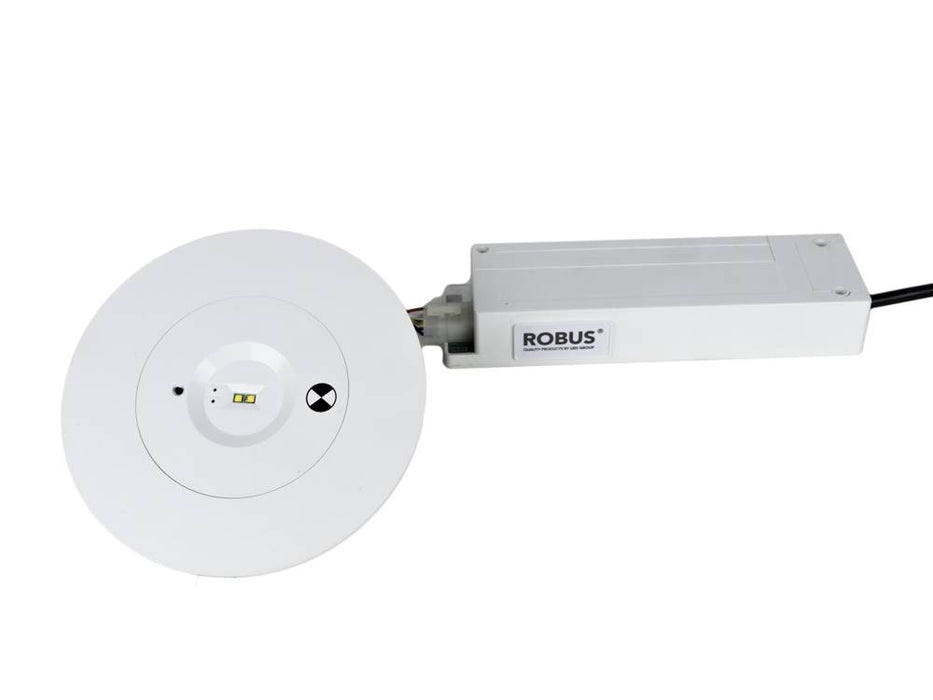

Dynamo Emergency Downlight 2W Non Maintain D40 Manual Test
LED Group Robus

Dynamo Emergency Downlight 2W Non Maintain D40 Manual Test

Ideal part number LGR1370081702 Manufacturer number RDY2NMEMT-01 Barcode 5391370081702
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

DYNAMO 2W Non Maintained, D40, Emergency Downlight, MANUAL test

This recessed, compact, discrete and attractive fitting utilising the latest energy efficient LED technology comes complete with battery pack and provides a high lumen output. It is an alternative to the bulky emergency packs usually associated with backup lighting and can be used to provide a common emergency solution throughout the whole building.High quality LiFePO4 battery providing 1.5 hours discharge duration, reliability and low maintenace.Provides 3 hour emergency operation when the mains power supply is lost.

Technical specifications

Protection class
II
Width
53 mm
Outer diameter
145 mm
Voltage type
AC
Built-in diameter
125 mm
Length
190 mm
Height/depth
30 mm
Lamp type
LED not exchangeable
Battery quality
Other
Nominal voltage
220,240 V
Degree of protection
IP20 (Ip: IP20)
Colour temperature
5700 K
Max. system power
2.1 W
Rated life time L70/B50 at 25 °C
30000 h
Rated ambient temperature according to IEC 62722-2-1
0,40 °C
Built-in height/depth
35 mm
Power factor
0.4
