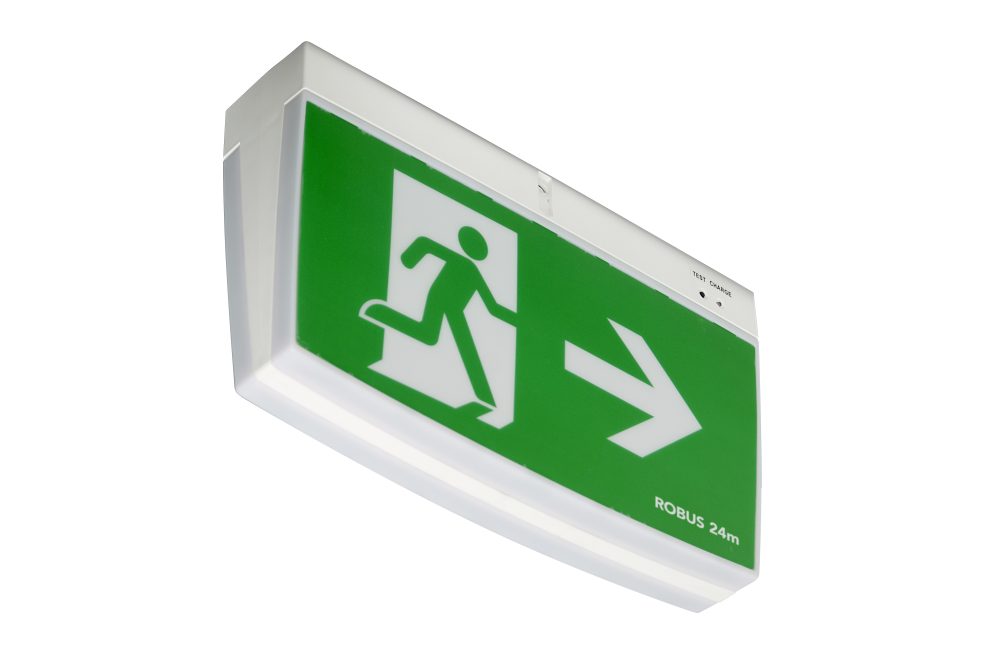

Viva Emergency Exit 4W Maintain Manual Test LifePo4 battery

Viva Emergency Exit 4W Maintain Manual Test LifePo4 battery

by LED Group Robus
Ideal Part Number LGR1370081726 Manufacturer Number R4EMLEDMT-01 Barcode 5391370081726

Product Details

VIVA 4W LED Maintained Emergency Exit Box, Manual Test, LiFePO4 Battery

  • Suitable for use in offices, public buildings, hotels, bars & clubs, restaurants, schools, health centres, hospitals.
  • LED replacement for 8W T5 fluorescent emergency exit signs.
  • Built in self test facility and LED charging indicator. Complies with relevant requirements of AS 2293.3.
  • Provides 90 minutes emergency operation.
  • High quality LiFePo4 battery with 3 years warranty.
  • Complete with 4 legends set. Fitting can be wired either Maintained or Non-Maintained
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Protection class
II
Width
80
Housing colour
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
Length
350
Height/depth
220
Housing material
Plastic
Lamp type
LED not exchangeable
Material cover
Plastic, opal
Battery quality
Other
Nominal voltage
220,240
Degree of protection (IP)
IP20
Colour temperature
6500
Max. system power
2
Rated life time L70/B50 at 25 °C
50000
Rated ambient temperature according to IEC 62722-2-1
0,40
Power factor
0
Width (unit)
mm
Length (unit)
mm
Height/depth (unit)
mm
Nominal voltage (unit)
V
Colour temperature (unit)
K
Max. system power (unit)
W
Rated life time L70/B50 at 25 °C (unit)
h
Rated ambient temperature according to IEC 62722-2-1 (unit)
°C
