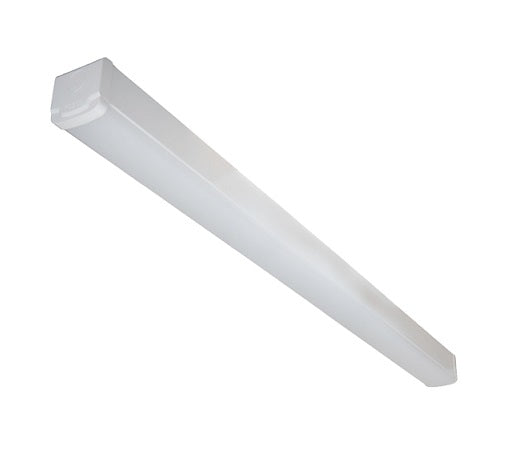

Duke2 Batten LED 4x Wattages CCT 3K 45K 65K IP20 4ft 1250mm
LED Group Robus

Duke2 Batten LED 4x Wattages CCT 3K 45K 65K IP20 4ft 1250mm

Ideal part number LGR1370082365 Manufacturer number RDKX12CCT3-01 Barcode 5391370082365
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Duke2 Batten LED 4x wattages Colour Change 3000k 4500k 6500k IP20 4foot 1250mm

The unique design of the Duke 2 allows a choice of 3000k,4000k or 6500k colour temperature,and power settings of 16watt,25watt,32watt and 40watt. Large terminals to allow for easy loop-in/loop-out connection.

Technical specifications

Protection class
I
Width
74 mm
Housing colour
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Length
1250 mm
Height/depth
74 mm
Lamp type
LED not exchangeable
Nominal voltage
220,240 V
Degree of protection
IP20 (Ip: IP20)
With light source
yes
Colour temperature
3000,6500 K
Rated life time L70/B50 at 25 °C
50000 h
Dimming 1-10 V
no
Dimming DALI
no
Dimming phase cut-off
no
Dimming phase cut-on
no
Dimming with push-button
no
No dim function
yes
Dimming DSI
no
Colour of light adjustable
Positions
Power factor
0.9
