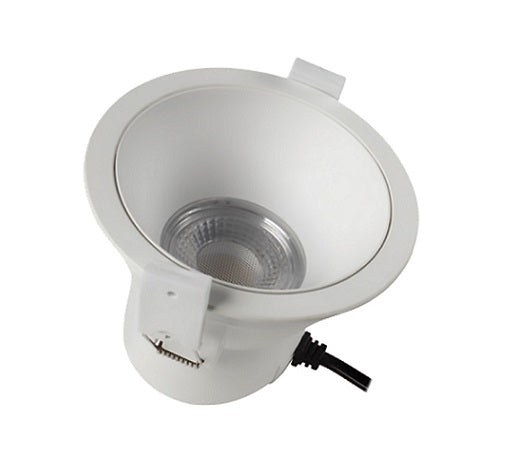

Cassie Downlight RCS8 8W CCT4 Dim IP44 White with Reflector
LED Group Robus

Cassie Downlight RCS8 8W CCT4 Dim IP44 White with Reflector

Ideal part number LGR1370082716 Manufacturer number RCS8CCT4NZ-01 Barcode 5391370082716
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cassie Downlight RCS8 8watt Colour Change 3000k 4000k 5000k 6500k Dim IP44 White with Reflector

The Cassie downlight is suitable for use in offices,showrooms, restaurants,receptoin areas, bar and clubs. The switch on the back allows easy selection of 3000k,4000k,5000k,6500 colour temperature.

Technical specifications

Protection class
II
Outer diameter
103 mm
Housing colour
Black
Surface protection
Untreated
Voltage type
AC
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Height/depth
85 mm
Housing material
Plastic
Lamp type
LED not exchangeable
Material cover
Plastic, structured
Impact strength
IK04
Nominal voltage
220,240 V
Degree of protection
IP44 (Ip: IP44)
With light source
yes
Suitable for built-in mounting
yes
Beam angle
Wide beam 40-80°
Colour temperature
3000,6500 K
Max. system power
8 W
Adjustability
not adjustable
Luminous flux
570,630 lm
Rated life time L70/B50 at 25 °C
30000 h
Colour consistency
SDCM6 (Mcadam ellipse: SDCM6)
Total harmonic distortion
27
Rated ambient temperature according to IEC 62722-2-1
-20,40 °C
Dimming 1-10 V
no
Dimming DALI
no
Dimming phase cut-off
yes
Dimming phase cut-on
yes
Dimming with push-button
no
No dim function
no
Luminaire efficacy
82 lm/W
Dimming DSI
no
Unified Glare Ratio
17.6 (Ugr: 17.6)
Colour of light adjustable
Positions
Built-in diameter
90 mm
Built-in height/depth
83 mm
Power factor
0.9
