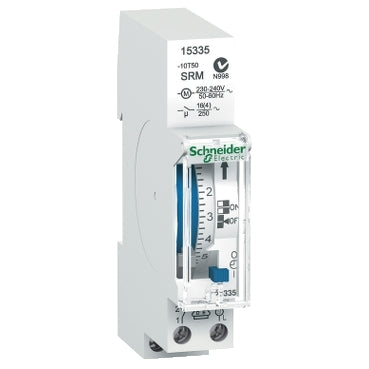

Acti9 IH Timer Analogue 24hr No Reserve

Product Details

Acti9 - IH - mechanical time switch - 24 hour - without memory

IH mechanical time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on daily level Swiching cycle is 24 h (daily) The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Manual override is possible 1 channel output
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
DIN rail
Width
18 mm
Height
90 mm
Depth
66 mm
Number of channels
1
Weekly program
no
Width in number of modular spacings
1
24 h program
yes
Suitable for manual operation
yes
Voltage type
AC (Supply voltage: AC)
Supply voltage
230 V
Frequency supply voltage
50 Hz
Shortest switching time channel 1
15 min
Nominal switching current at 250 V AC
16 A
Degree of protection
IP20 (Ip: IP20)
