Terminal Shield 4P Long
by Merlin Gerin
Ideal Part Number MGELV429518
Manufacturer Number LV429518
Barcode 3606480019920
Product Details

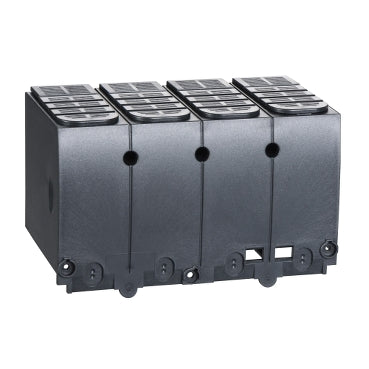

long terminal shield, ComPact NSX100/160/250, pitch 35 mm, IP40, 4 poles
This is an insulation accessory for 4 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
This is an insulation accessory for 4 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
