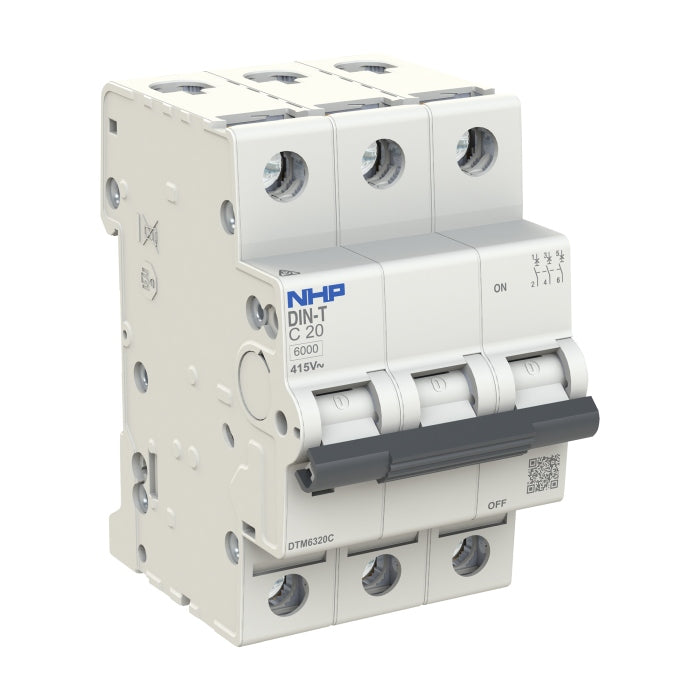

DIN-T MCB 3P 20A 10kA C-Curve

DIN-T MCB 3P 20A 10kA C-Curve

by NHP Electrical Engineering Products
Ideal Part Number NHPDTM10320C Manufacturer Number DTM10320C Barcode 4053546128345

Product Details

DIN-T Miniature Circuit Breaker 3P 20A 10kA C-Curve
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
DC
Rated current
20
Rated voltage
415 V
Frequency
50,60 Hz
Release characteristic
C
Rated insulation voltage Ui
440 V
Pollution degree
3
Width in number of modular spacings
3
Degree of protection
IP40 (Ip: IP40)
Number of protected poles
3
Connectable conductor cross section solid-core
0.75,35 mm²
Connectable conductor cross section multi-wired
0.75,35 mm²
Ambient temperature during operating
-25,55 °C
Number of poles
3 (Total: 3)
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Rated impulse withstand voltage Uimp
4 kA
