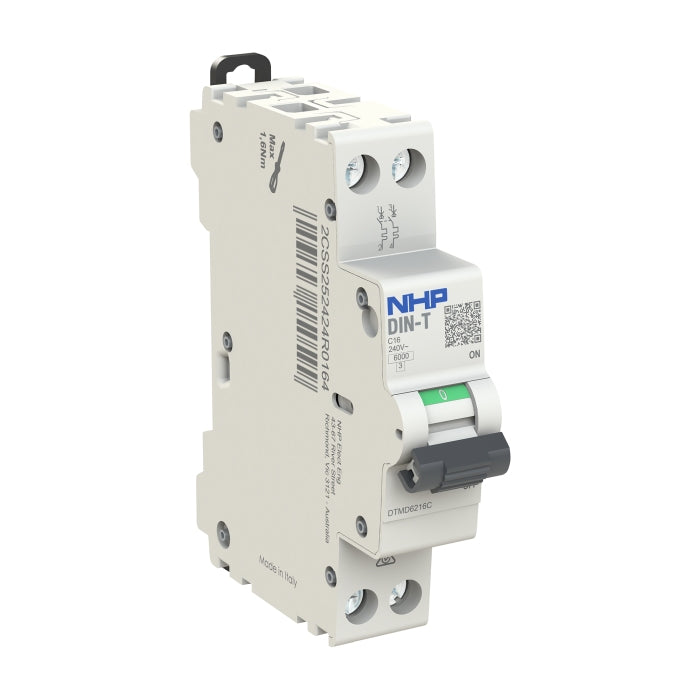

DIN-T MCB 2P 6A 6kA C-Curve 18mm
NHP Electrical Engineering Products

DIN-T MCB 2P 6A 6kA C-Curve 18mm

Ideal part number NHPDTMD6206C Manufacturer number DTMD6206C
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

DIN-T Miniature Circuit Breaker 2P 6A 6kA C-Curve 18mm

Technical specifications

Voltage type
AC
Rated current
6
Rated voltage
240 V
Frequency
50,60 Hz
Release characteristic
C
Rated insulation voltage Ui
400 V
Pollution degree
3
Width in number of modular spacings
1
Degree of protection
IP40 (Ip: IP40)
Number of protected poles
2
Connectable conductor cross section solid-core
1,16 mm²
Connectable conductor cross section multi-wired
1,10 mm²
Ambient temperature during operating
-25,55 °C
Number of poles
2 (Total: 2)
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Rated impulse withstand voltage Uimp
6 kA
