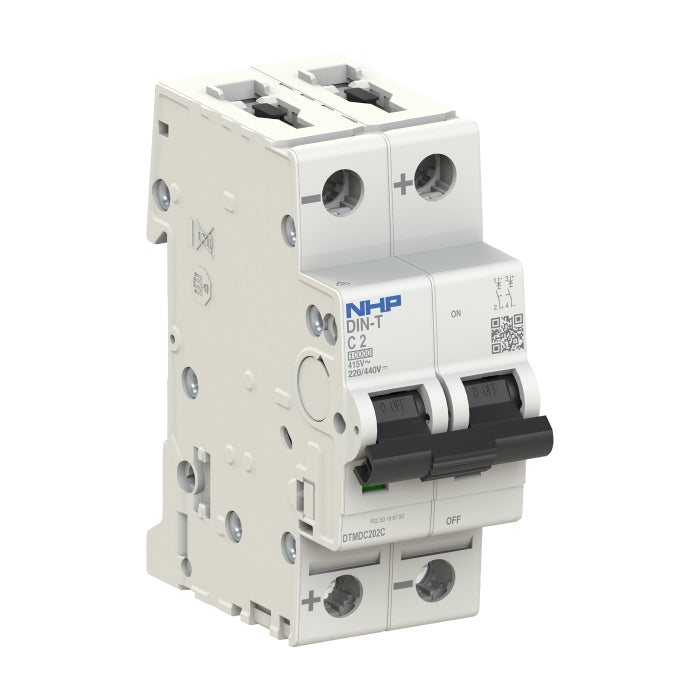

DIN-T MCB DC 2P 50A 10kA C-Curve
NHP Electrical Engineering Products

DIN-T MCB DC 2P 50A 10kA C-Curve

Ideal part number NHPDTMDC250C Manufacturer number DTMDC250C Barcode 4053546150353
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

DIN-T Miniature Circuit Breaker DC 2P 50A 10kA C-Curve

Technical specifications

Voltage type
DC
Rated current
50
Rated voltage
440 V
Frequency
50,60 Hz
Release characteristic
C
Rated insulation voltage Ui
440 V
Pollution degree
3
Width in number of modular spacings
2
Degree of protection
IP40 (Ip: IP40)
Number of protected poles
2
Connectable conductor cross section solid-core
0.75,35 mm²
Connectable conductor cross section multi-wired
0.75,25 mm²
Ambient temperature during operating
-25,70 °C
Number of poles
2 (Total: 2)
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6 kA
Rated impulse withstand voltage Uimp
4 kA
