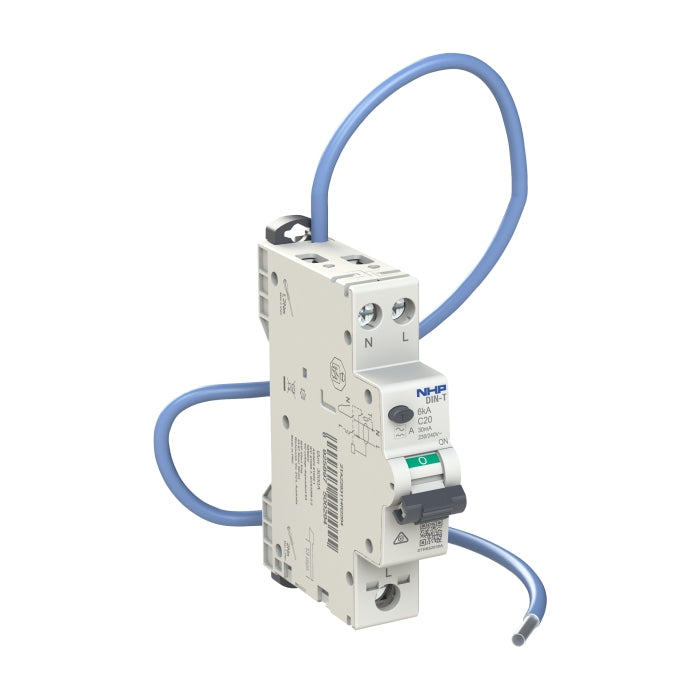

DIN-T RCBO 1P+N 10A 6kA B-Curve 30mA Type A
NHP Electrical Engineering Products

DIN-T RCBO 1P+N 10A 6kA B-Curve 30mA Type A

Ideal part number NHPDTR6S1030AB Manufacturer number DTR6S1030AB Barcode 6925897500331
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

DIN-T RCBO 1P+N 10A 6kA B-Curve 30mA Type A

Technical specifications

Voltage type
AC
Rated current
10
Rated voltage
240 V
Rated insulation voltage Ui
500 V
Leakage current type
A
Pollution degree
2
Width in number of modular spacings
1
Degree of protection
IP40 (Ip: IP40)
Connectable conductor cross section solid-core
1,35 mm²
Connectable conductor cross section multi-wired
1,25 mm²
Number of poles
2 (Total: 2)
Rated impulse withstand voltage Uimp
4 kA
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
6
