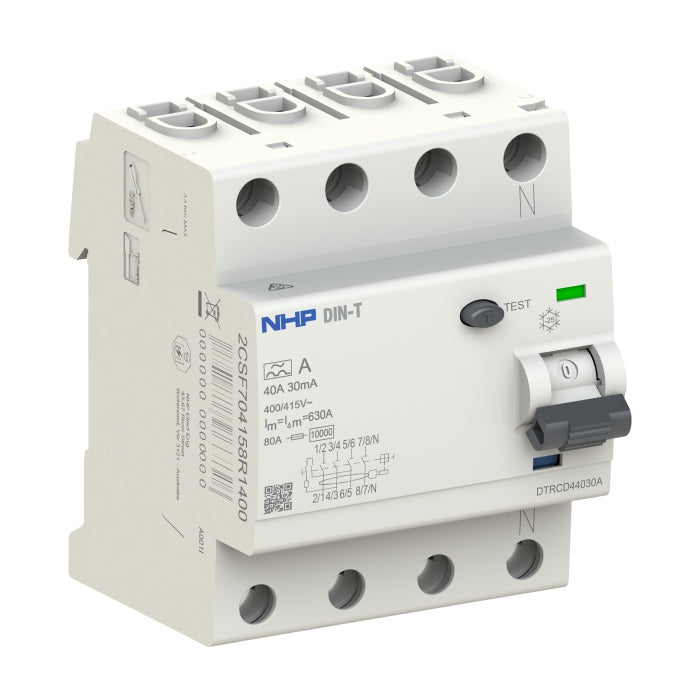

DIN-T RCCB 3P+N 40A 30mA Type AI 72mm

DIN-T RCCB 3P+N 40A 30mA Type AI 72mm

by NHP Electrical Engineering Products

Product Details

DIN-T RCCB 3P+N 40A 30mA Type AI 72mm
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
DIN rail
Voltage type
AC
Rated current
40
Rated voltage
415 V
Rated insulation voltage Ui
500 V
Number of poles
4
Leakage current type
Other
Pollution degree
2
Width in number of modular spacings
4
Degree of protection
IP40 (Ip: IP40)
Connectable conductor cross section solid-core
1,25 mm²
Connectable conductor cross section multi-wired
1,16 mm²
Ambient temperature during operating
-25,70 °C
Rated impulse withstand voltage Uimp
4 kA
