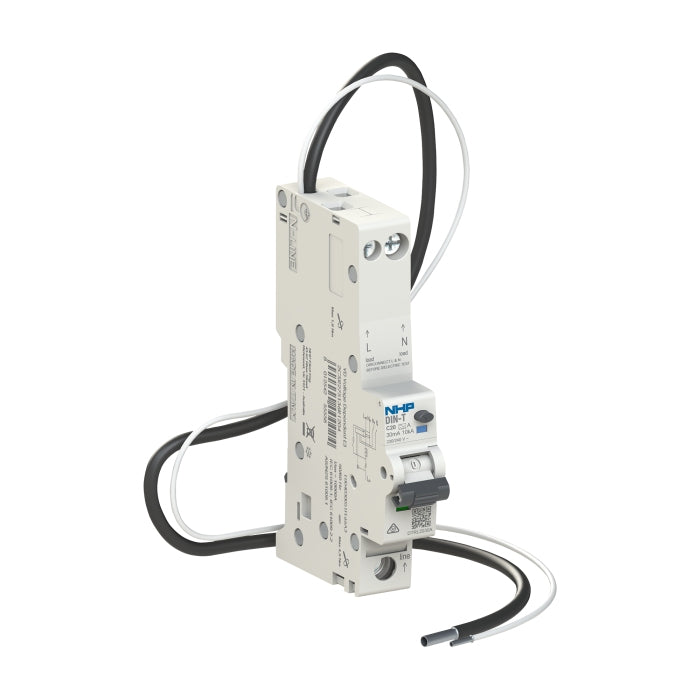

DIN-T RCBO 1P+N 16A 10kA C-Curve 30mA Type F Longbody
NHP Electrical Engineering Products

DIN-T RCBO 1P+N 16A 10kA C-Curve 30mA Type F Longbody

Ideal part number NHPDTRL1630F Manufacturer number DTRL1630F Barcode 8012542656951
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

DIN-T RCBO 1P+N 16A 10kA C-Curve 30mA Type F Longbody

Technical specifications

Voltage type
AC
Rated current
16
Rated voltage
240 V
Rated insulation voltage Ui
500 V
Leakage current type
F
Width in number of modular spacings
1
Degree of protection
IP40 (Ip: IP40)
Connectable conductor cross section solid-core
1,35 mm²
Connectable conductor cross section multi-wired
1,25 mm²
Number of poles
2 (Total: 2)
Rated impulse withstand voltage Uimp
4 kA
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
10
