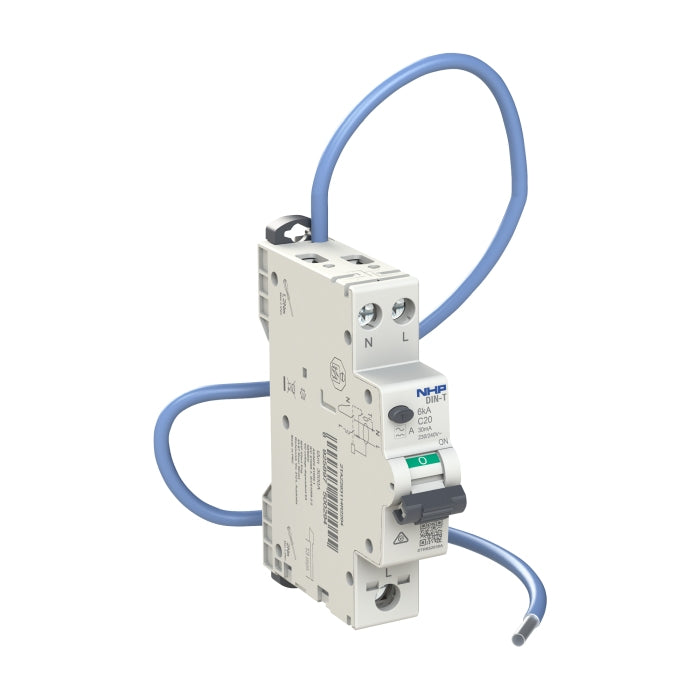

DIN-T RCBO 1P+N 6A 10kA C-Curve 10mA Type A

DIN-T RCBO 1P+N 6A 10kA C-Curve 10mA Type A

by NHP Electrical Engineering Products

Product Details

DIN-T RCBO 1P+N 6A 10kA C-Curve 10mA Type A
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Rated current
6
Rated voltage
240 V
Rated insulation voltage Ui
500 V
Leakage current type
A
Width in number of modular spacings
1
Degree of protection
IP40 (Ip: IP40)
Connectable conductor cross section solid-core
1,35 mm²
Connectable conductor cross section multi-wired
1,25 mm²
Number of poles
2 (Total: 2)
Rated impulse withstand voltage Uimp
4 kA
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
10
