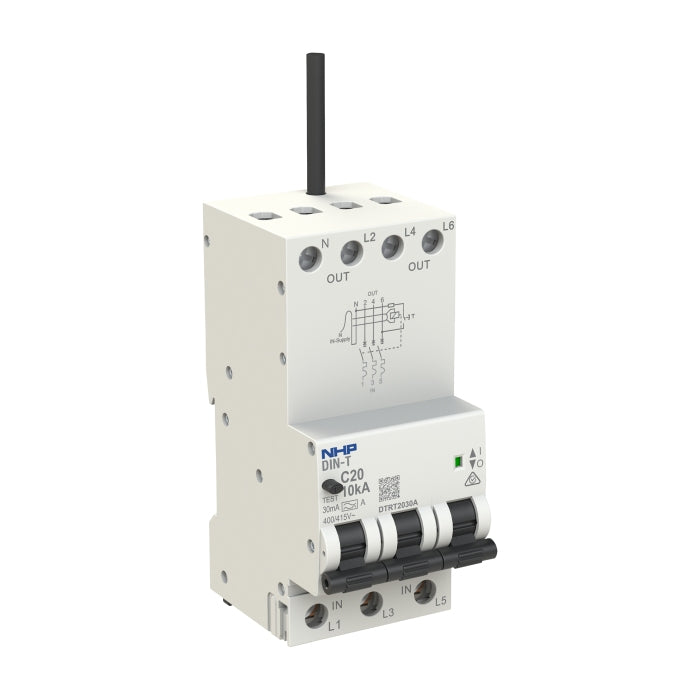

DIN-T RCBO 3P+N 32A 10kA C-Curve 100mA Type A Longbody 54mm

DIN-T RCBO 3P+N 32A 10kA C-Curve 100mA Type A Longbody 54mm

by NHP Electrical Engineering Products
Ideal Part Number NHPDTRT32100A Manufacturer Number DTRT32100A Barcode 9321807006561

Product Details

DIN-T RCBO 3P+N 32A 10kA C-Curve 100mA Type A Longbody 54mm
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Rated current
32
Rated voltage
415 V
Rated insulation voltage Ui
500 V
Leakage current type
A
Width in number of modular spacings
3
Degree of protection
IP40 (Ip: IP40)
Connectable conductor cross section solid-core
1,25 mm²
Connectable conductor cross section multi-wired
1,16 mm²
Number of poles
4 (Total: 4)
Rated impulse withstand voltage Uimp
4 kA
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
10
