Cable Cantol 120mm 1c Single Cu
Nexans NZ

Cable Cantol 120mm 1c Single Cu

Ideal part number OLX2440 Manufacturer number BDBC23AA001CXNA Barcode 99416079021329
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

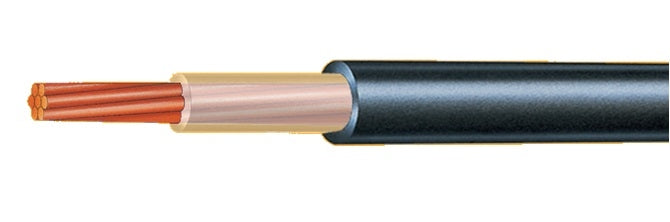

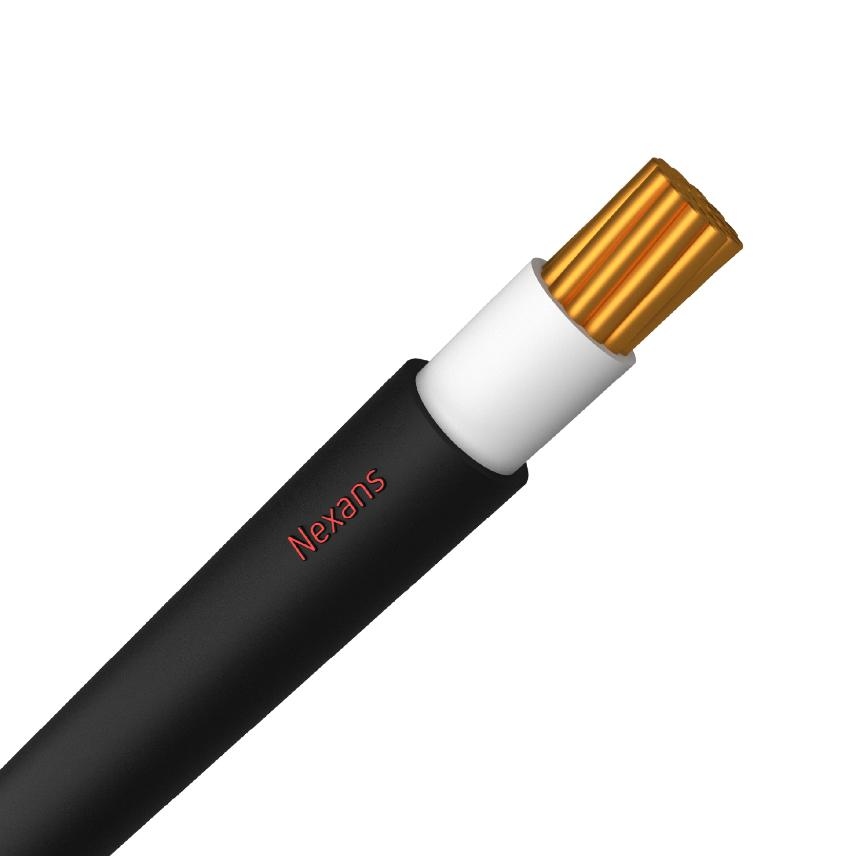

Nexans Cable Cantol XLPE 120mm 1 Core Single Copper

For use in various situations to supply the main power from the point of supply (either single or three phase application) to buildings, equipment, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc. Commonly used in Industrial and commercial applications and Power Authority Networks.

Technical specifications

Nominal cross section conductor
120 mm²
Material core insulation
XLPE
Nominal voltage U0
0.6 kV
Outer diameter approx.
18.6 mm
