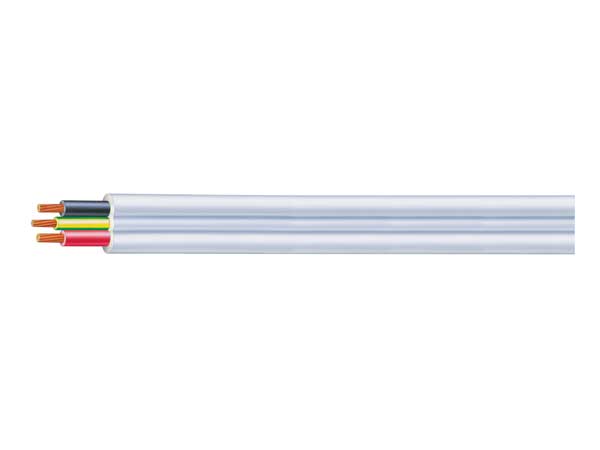

Cable 1.5mm 2c + Earth Flat TPS Cu White

Cable 1.5mm 2c + Earth Flat TPS Cu White

by Nexans NZ
Ideal Part Number OLX2521 Manufacturer Number CNZQ05A1002WVHF Barcode 9416079020886

Product Details

Nexans Cable 1.5mm 2 Core and Earth Flat TPS Cu White

Two Core and Earth TPS to AS/NZS 5000.2. Copper Conductor, PVC Insulation, PVC Sheath. Rated Voltage Uo/U 450/750V
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal cross section conductor
1 mm²
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Red, Black, Green/Yellow (2.5 mm²)
Nominal voltage U
750 V
Colour outer sheath
White
Conductor material
Copper
Material outer sheath
Polyvinyl chloride (PVC)
Conductor category
Class 2 = stranded
Nominal voltage U0
450 V
Number of cores
3
Max. conductor temperature
75 °C
