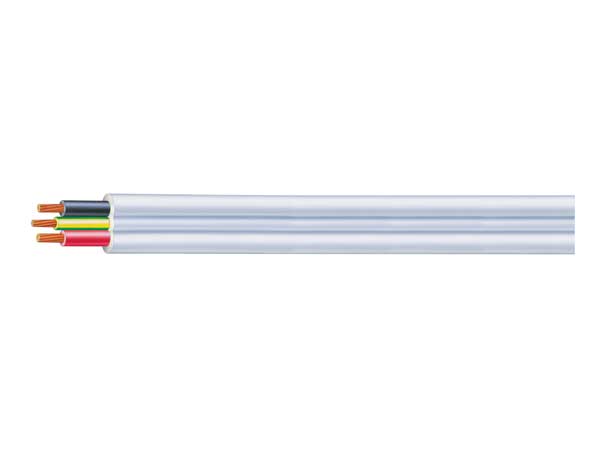

Cable 6mm 2c + Earth Flat TPS White (500m Drum)

Cable 6mm 2c + Earth Flat TPS White (500m Drum)

by Nexans NZ
Ideal Part Number OLX31465 Manufacturer Number CNCP11A5002WVHF Barcode 9416079056632

Product Details

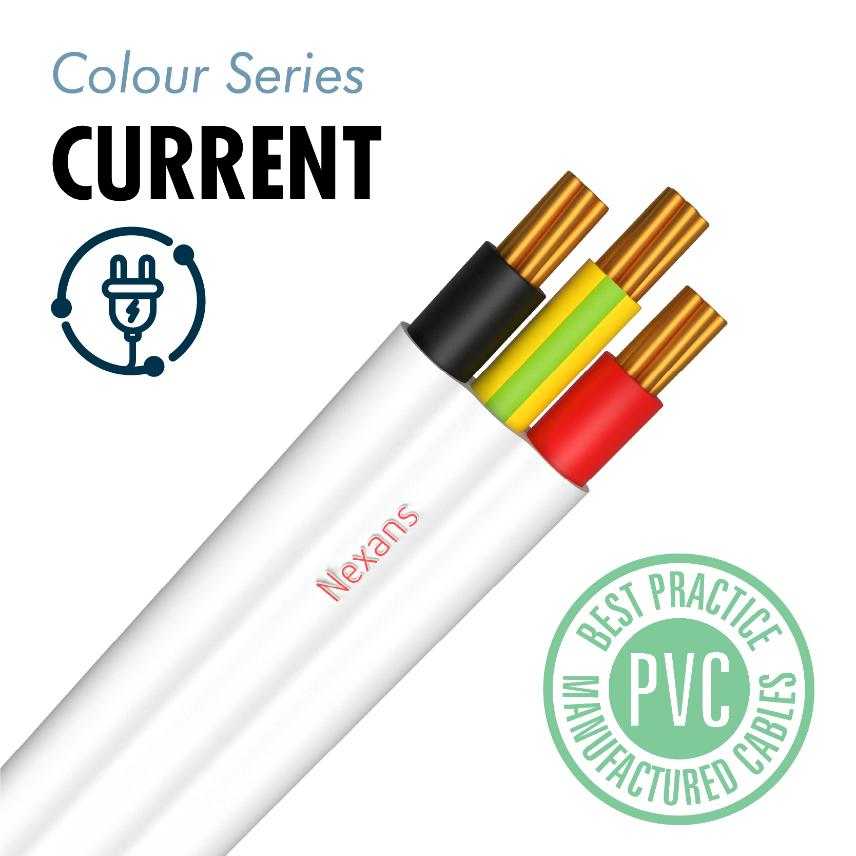

Nexans Cable 6.0mm 2 Core and Earth Flat TPS White (500m Drum)

Two Core and Earth TPS to AS/NZS 5000.2. Copper Conductor, PVC Insulation, PVC Sheath. Rated Voltage Uo/U 450/750V
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal cross section conductor
6 mm²
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Red, Black, Green/Yellow (2.5 mm²)
Nominal voltage U
750 V
Colour outer sheath
White
Conductor material
Copper
Material outer sheath
Polyvinyl chloride (PVC)
Conductor category
Class 2 = stranded
Nominal voltage U0
450 V
Number of cores
3
Max. conductor temperature
75 °C
