Cable 120mm 3c + Pilot Al XLPE Neutral Screen
Nexans NZ

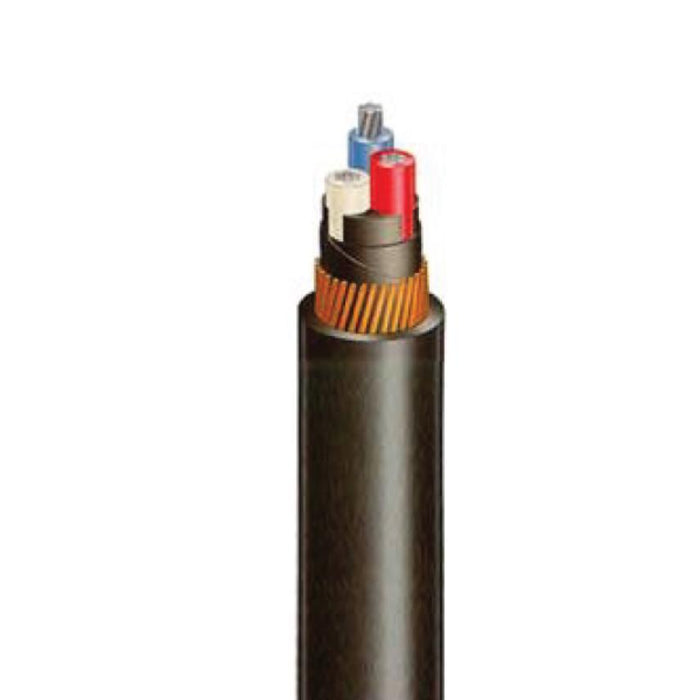

Cable 120mm 3c + Pilot Al XLPE Neutral Screen

Ideal part number OLX3164 Manufacturer number QDZG23PX003CXRJ Barcode 99416079028823
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

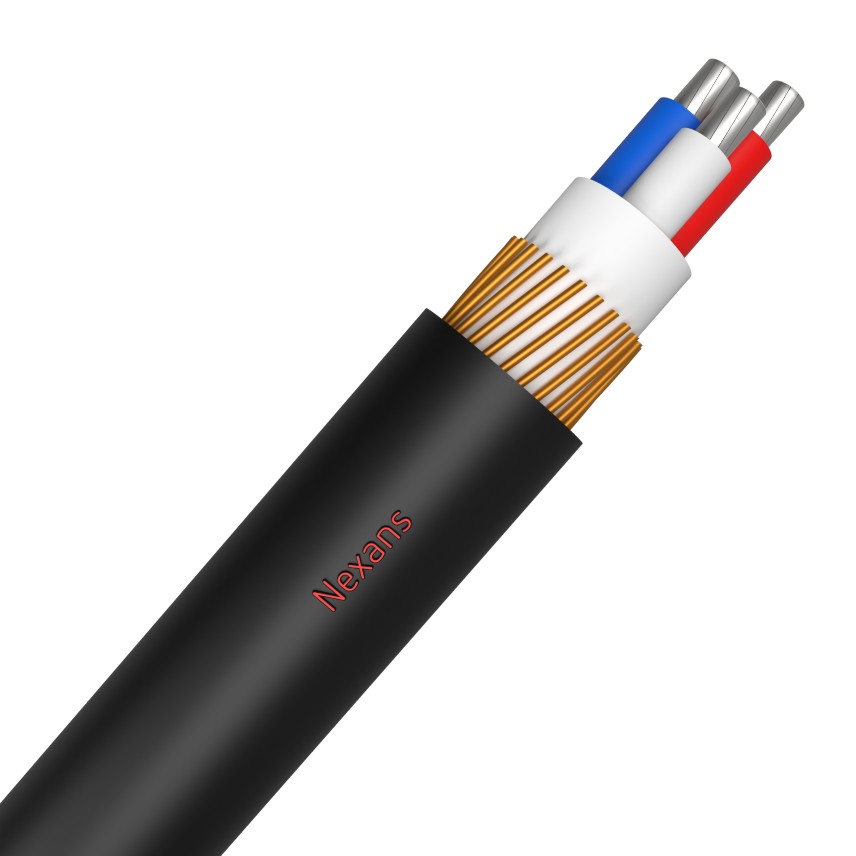

Nexans Cable 120mm 3 Core and Pilot Aluminium XLPE Neutral Screen

For use in various situations to supply the main power from the point of supply to buildings, equipment, shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor and so on

Technical specifications

Nominal cross section conductor
120 mm²
Material core insulation
XLPE
Core identification
Red, White Blue
Colour outer sheath
Black
Shape of conductor
Sector-shaped, stranded
Conductor material
Aluminum
Material outer sheath
PVC
Number of pilot/reduced conductors
1
Number of cores
3
Max. conductor temperature
90 °C
Outer diameter approx.
39.6 mm
