Cable 16mm 4c Cu XLPE (1.5RT) PVC

Cable 16mm 4c Cu XLPE (1.5RT) PVC

by Nexans NZ
Ideal Part Number OLX3996 Manufacturer Number HEVP15VT004CXEM Barcode 99416079033292

Product Details

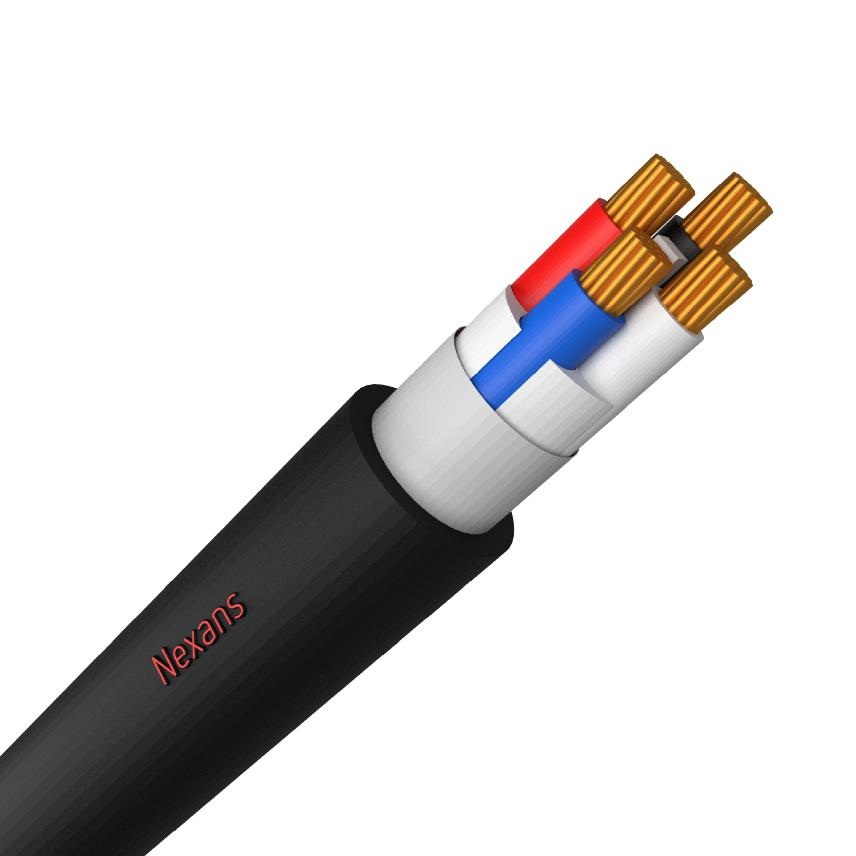

Nexans Cable 16mm 4 Core Copper XLPE (1.5RT) PVC Distribution Cable Vector Specification
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal cross section conductor
16
Material core insulation
XLPE
Core identification
Red, Black
Colour outer sheath
Black
Shape of conductor
Circular, stranded
Conductor material
Copper
Material outer sheath
PVC
Nominal voltage U0
0
Number of cores
4
Max. conductor temperature
90
Outer diameter approx.
22
Nominal cross section conductor (unit)
mm²
Nominal voltage U0 (unit)
kV
Max. conductor temperature (unit)
°C
Outer diameter approx. (unit)
mm
