Cable 35mm 3c Al XLPE Neutral Screen

Ideal Part Number OLX6229 Manufacturer Number FEGH38PX003CXRJ Barcode 99416079070617

Product Details

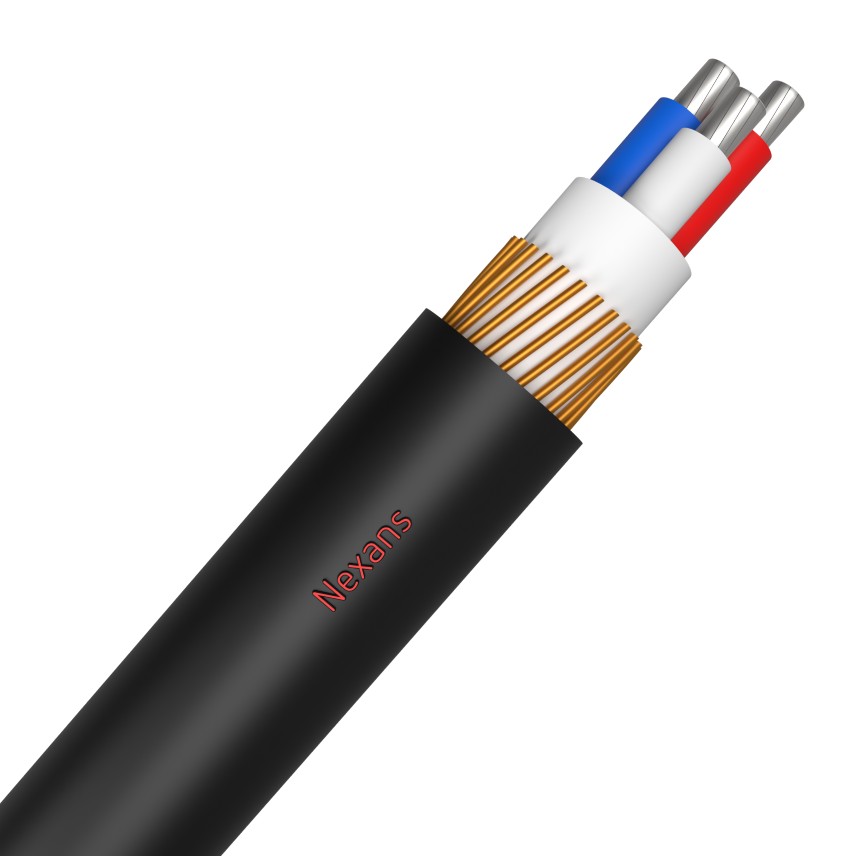

Nexans Cable 35mm 3 Core Aluminium XLPE Neutral Screen

For use in various situations to supply the main power from the point of supply to buildings, equipment, shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor and so on
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal cross section conductor
35 mm²
Material core insulation
XLPE
Core identification
Red, White Blue
Colour outer sheath
Black
Shape of conductor
Sector-shaped, stranded
Conductor material
Aluminum
Material outer sheath
PVC
Number of pilot/reduced conductors
0
Number of cores
3
Max. conductor temperature
90 °C
Outer diameter approx.
28 mm
