Cable 50mm 4c Cu XLPE Neutral Screen
Nexans NZ

Cable 50mm 4c Cu XLPE Neutral Screen

Ideal part number OLX7610 Manufacturer number HEGV36PX004CXEM Barcode 99416079022579
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

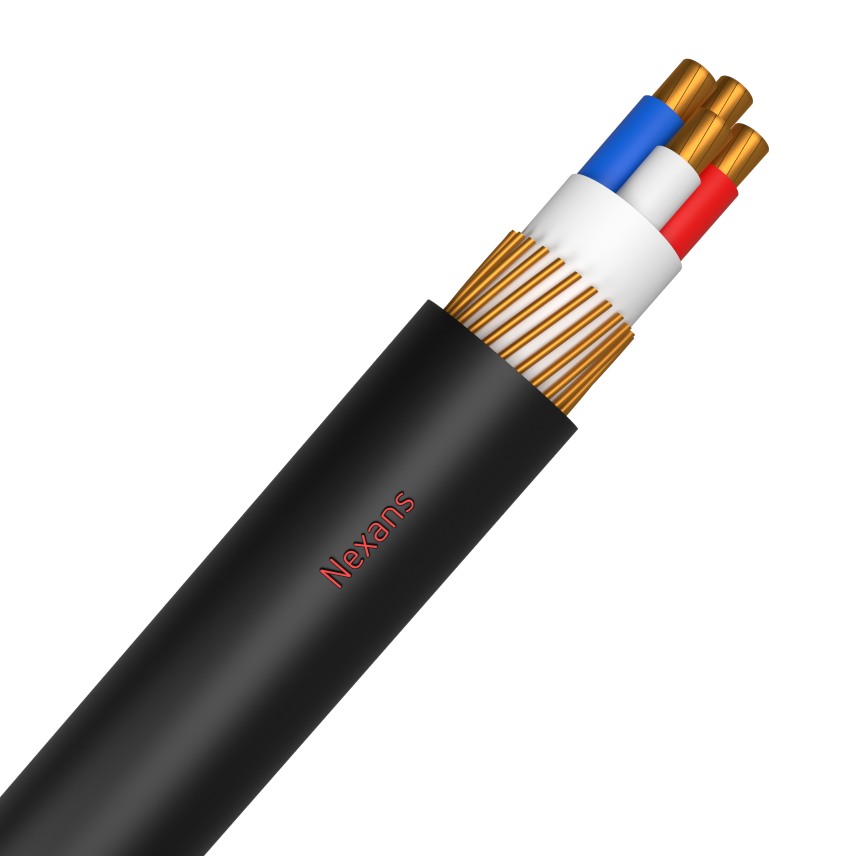

Nexans Cable 50mm 4 Core Copper XLPE Neutral Screen

For use in various situations to supply the main power from the point of supply to buildings, equipment, shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor and so on

Technical specifications

Nominal cross section conductor
50 mm²
Material core insulation
XLPE
Core identification
Red, White, Blue, Black
Colour outer sheath
Black
Shape of conductor
Sector-shaped, stranded
Conductor material
Copper
Material outer sheath
PVC
Number of cores
4
Max. conductor temperature
90 °C
Outer diameter approx.
33 mm
