Cable Envirolex 2.5mm 4c + Earth Flex 90 LSZH Orange
Nexans NZ

Cable Envirolex 2.5mm 4c + Earth Flex 90 LSZH Orange

Ideal part number OLX7956 Manufacturer number HTHR05HF004OMEM Barcode 9319215467647
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

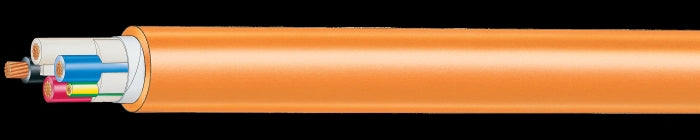

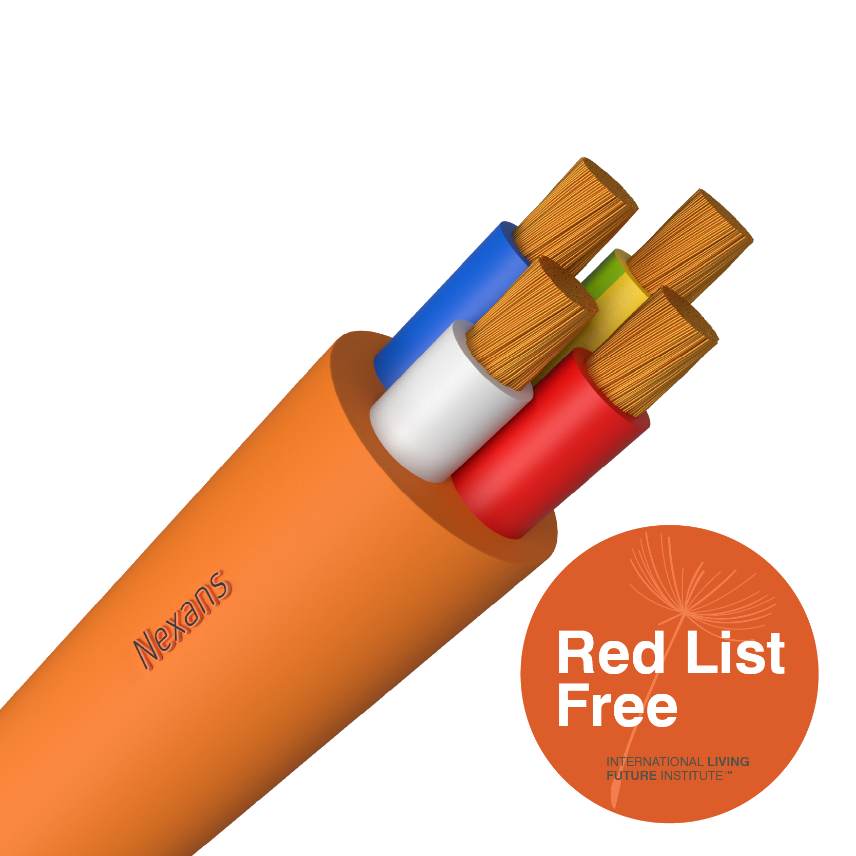

Nexans Flexible Cable Envirolex 2.5mm 4 Core and Earth Flex 90 LSZH Orange

Envirolex® is an extensive range of environmentally friendly cables developed for both domestic and commercial applications. Made with low smoke zero halogen (LSZH) materials, making them PVC free and engineered to reduce environmental impact under fire condition. By reducing emissions of harmful gases that may hinder an evacuation process during fire, these cables have been designed with safety in mind whilst retaining excellent mechanical and electrical properties. Envirolex® have Red List Free Declare status by the International Living Future Institute, making them a healthy product choice for Sustainable building projects.

Technical specifications

Nominal cross section conductor
2.5 mm²
Colour outer sheath
Orange
Material outer sheath
HFS-90-TP
Nominal voltage U0
0.6 kV
Outer diameter approx.
13.6 mm
