Cable 25mm 3c Cu XLPE Neutral Screen

Cable 25mm 3c Cu XLPE Neutral Screen

by Nexans NZ
Ideal Part Number OLX8090 Manufacturer Number FEGC16PX003CXRJ Barcode 99416079021220

Product Details

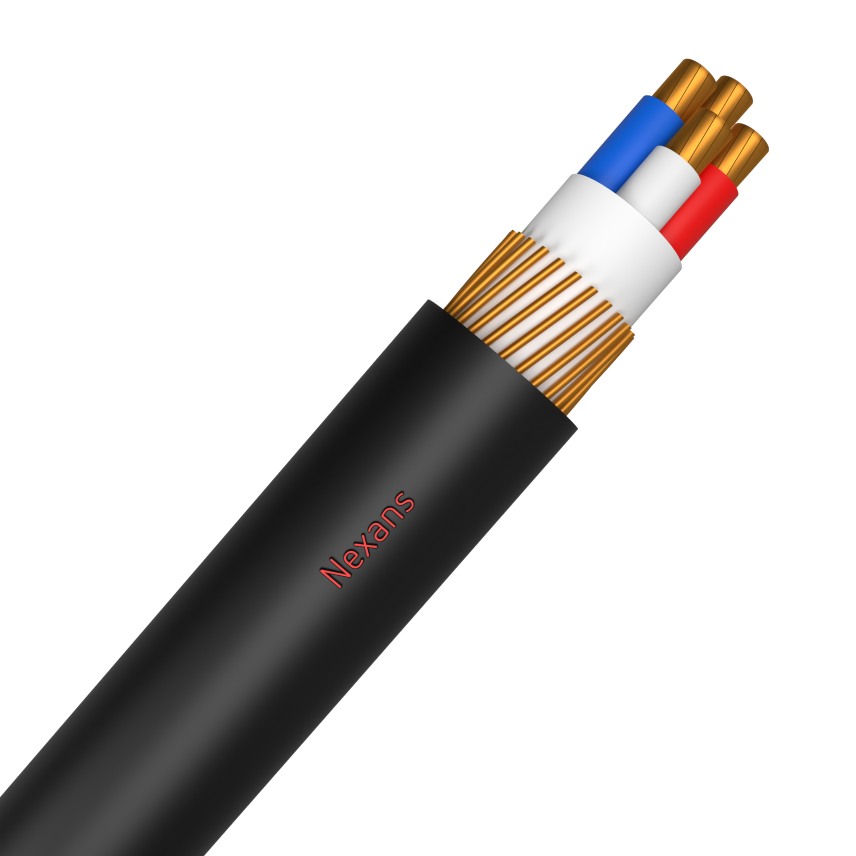

Nexans Cable 25mm 3 Core Copper XLPE Neutral Screen

For use in various situations to supply the main power from the point of supply to buildings, equipment, shed, e.g. switch board to main control cabinet, main between floors and buildings, cable cabinet to motor and so on
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal cross section conductor
25
Material core insulation
XLPE
Core identification
Red, White Blue
Colour outer sheath
Black
Shape of conductor
Circular compacted stranded
Conductor material
Copper
Material outer sheath
PVC
Number of cores
3
Max. conductor temperature
90
Outer diameter approx.
25
Nominal cross section conductor (unit)
mm²
Max. conductor temperature (unit)
°C
Outer diameter approx. (unit)
mm
