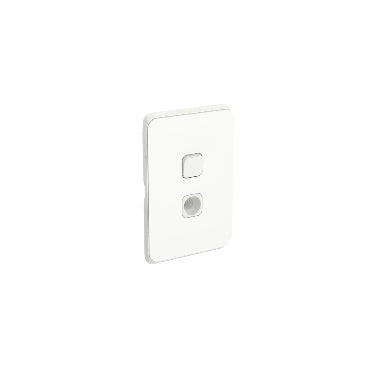

Iconic PCU Single Switched 20A White
PDL by Schneider Electric

Iconic PCU Single Switched 20A White

Ideal part number PDL351 Manufacturer number PDL351-VW Barcode 9416175241130
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Switch Iconic - Assembled - Vertical - 1-gang - Cable entry clamp - 250 V - 20 A / 16 AX - Vivid White

Schneider Electric PDL Iconic switch PDL351-VW is a complete switch in colour vivid white with 1 rocker. This is a 1/2-way switch. Its fixing mode is by screws. And its rated current is 20A/16AX. It is 78 mm in width, 120 mm in height, 39 mm in depth. Its matching mounting box can be recessed into the surface of the wall with flush type. The surface finish is matt, gaining extra point for your interior design. The connection terminals of this switch are screw terminals. Being made of ABS (acrylonitrile butadiene-styrene), PA66, PC (polycarbonate), POM (polyoxymethylene), PP (polypropylene) material, this switch is quite reliable and resistant. It obtained RCM certificate as well. And it is mercury free. Iconic switches are quick and easy to personalise with pictogram rockers that even your customers can change. The standard Iconic collection from PDL by Schneider Electric is joined by two completely new looks with the sophisticated Styl and fresh Essence skin ranges.

Technical specifications

Nominal voltage
250 V
Mounting method
Flush mounted
Assembly arrangement
Basic element with full cover plate
Method of operation
Rocker
Colour
White
With mounting plate
yes
Connection type
Screw terminal
Surface protection
Untreated
Rated current
20 A
Material quality
Thermoplastic
Material
Plastic
Type of fastening
Screw mounting
Wiring system
2 Way Switch
Number of rockers
1
RAL-number
9003 (Similar: 9003)
Switching current for fluorescent lamps
16 AX
Surface finishing
Matt
Suitable for degree of protection
IP2X (Ip: IP2X)
Device width
78 mm
Device height
120 mm
Device depth
39 mm
Label space/information surface
without labelling field
