Iconic Switch Mech Controllink Slave
PDL by Schneider Electric

Iconic Switch Mech Controllink Slave

Ideal part number PDL356PBSSVW Manufacturer number PDL356PBSSVW Barcode 9416175243165
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

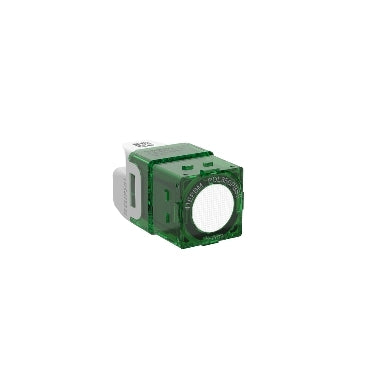

Iconic 300 Series Module - ControlLink - 240 V - Slave Vivid White

Schneider Electric PDL Iconic timer PDL356PBSS-VW is in colour vivid white. Its matching mounting box can be recessed into the surface of the wall with flush type. 240V is the rated operational voltage. It is 23 mm in width, 23 mm in height, 40 mm in depth, with an embedding depth of 38 mm. The connection terminals of this timer are screw terminals. The timer is made of PC (UL94 V-2), PC MAS056 (UL94 V-2), making it as resistant as possible. Being environmentally friendly, this timer is a green premium product too. And it is mercury free. The standard Iconic collection from PDL by Schneider Electric is joined by two completely new looks with the sophisticated Styl and fresh Essence skin ranges.

Technical specifications

Nominal voltage
240 V
Mounting method
Module Frame
Assembly arrangement
Basic Element
Method of operation
Push-button
With mounting plate
no
Connection type
Screw terminal
Surface protection
Untreated
Material quality
Thermoplastic
Material
Plastic
Type of fastening
Clip-in
Wiring system
2-Wire
Push button switch
yes
Surface finishing
Matt
Suitable for degree of protection
IP2X (Ip: IP2X)
Device width
22 mm
Device height
22 mm
Device depth
40 mm
Number of modules
1 (Module system: 1)
