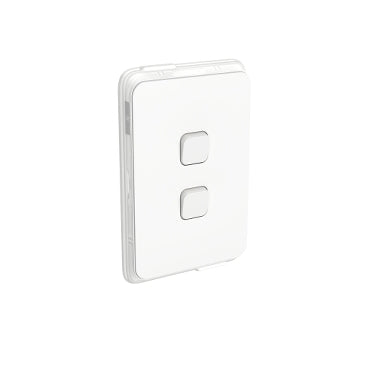

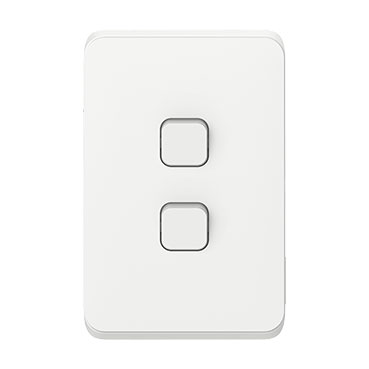

Iconic Switch Double 20A Waterproof Vert White IP44
PDL by Schneider Electric

Iconic Switch Double 20A Waterproof Vert White IP44

Ideal part number PDL382VWP Manufacturer number PDL382VWP-VW Barcode 9416175241710
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Switch Iconic - Assembled - Vertical - 2 gang - Wet Hands switch IP44 240V - 20 A / 16 AX Vivid White

Schneider Electric PDL Iconic switch PDL382VWP-VW is a complete switch in colour vivid white with 2 rockers. This is a 1/2-way switch. Its fixing mode is by screws. And its rated current is 20A/16AX. It is 82 mm in width, 124 mm in height, 40 mm in depth. Its matching mounting box can be recessed into the surface of the wall with flush type. The surface finish is matt, gaining extra point for your interior design. With IP44 level reached, the device has better performance against solid particle and liquid. Its connection terminals are screw terminals. Being made of ABS (acrylonitrile butadiene-styrene), PA66, PC (polycarbonate), POM (polyoxymethylene), PP (polypropylene), TPE (thermoplastic elastomer) material, this switch is quite reliable and resistant. It obtained RCM certificate as well. Iconic switches are quick and easy to personalise with pictogram rockers that even your customers can change. The standard Iconic collection from PDL by Schneider Electric is joined by two completely new looks with the sophisticated Styl and fresh Essence skin ranges.

Technical specifications

Nominal voltage
250 V
Mounting method
Flush mounted
Assembly arrangement
Basic element with full cover plate
Method of operation
Rocker
Colour
White
With mounting plate
yes
Connection type
Screw terminal
Surface protection
Untreated
Rated current
20 A
Material quality
Thermoplastic
Material
Plastic
Type of fastening
Screw mounting
Wiring system
2 Way Switch
Number of rockers
2
RAL-number
9003 (Similar: 9003)
Switching current for fluorescent lamps
16 AX
Surface finishing
Matt
Suitable for degree of protection
IP44 (Ip: IP44)
Device width
82 mm
Device height
124 mm
Device depth
40 mm
Label space/information surface
without labelling field
Number of modules
2 (Module system: 2)
