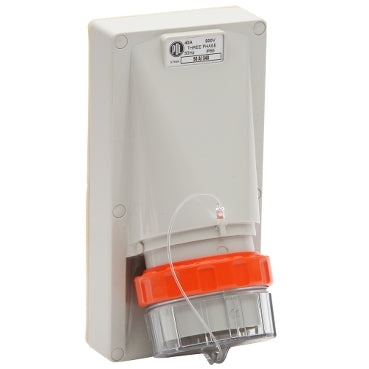

Appliance Inlet 5Pin 40A 500V 3Ph IP66 Grey
PDL by Schneider Electric

Appliance Inlet 5Pin 40A 500V 3Ph IP66 Grey

Ideal part number PDL56AI540 Manufacturer number PDL56AI540LE Barcode 9416175038754
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Appliance Inlet Industrial 5 Round Pins 40A 500V 3 Phase IP66 Grey

56 Series Appliance Inlets can be used with any appropriately rated cord connector maintaining the IP66 rating. Appliance Inlets are to be mounted vertically into a standard 2 gang or larger enclosure. Note: 56AI310 and 56A1315 fi t on a standard 56E1 enclosure. A captive clear cover is provided for sealing out water and dust to maintain the IP66 rating when not in use. These are available as a spare: Cat 56PC.

Technical specifications

RAL-number
7035
Construction type
Appliance Inlet
Number of poles
3
Material
PC (Polycarbonate)
IEC-amperage
40 A
Connection system
Screwed terminal
Insert direction
Angled
Degree of protection
IP66 (Ip: IP66)
Identification colour
Grey
Voltage according to EN 60309-2
500 V (50+60 Hz) black
