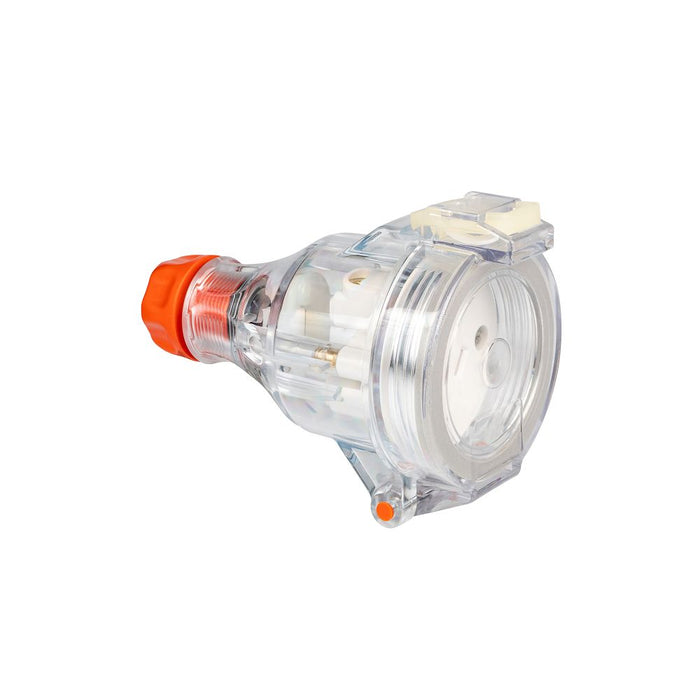

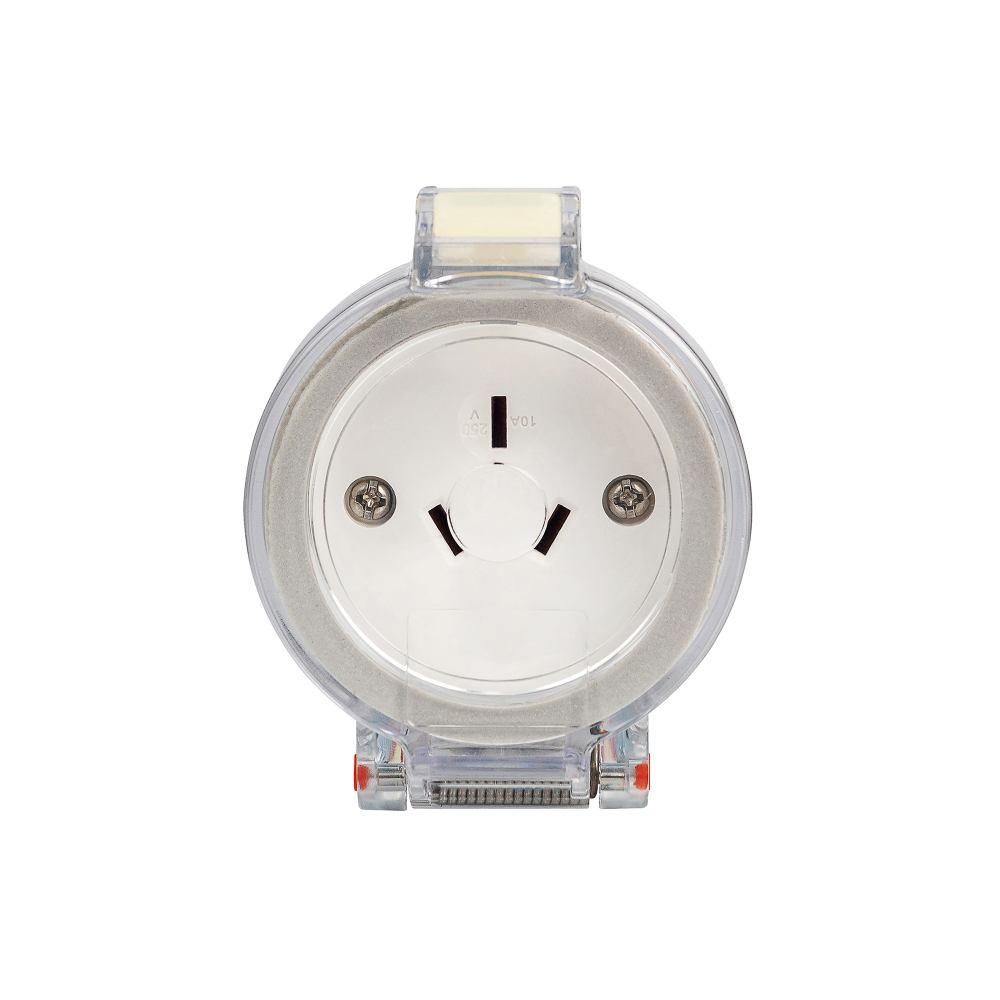

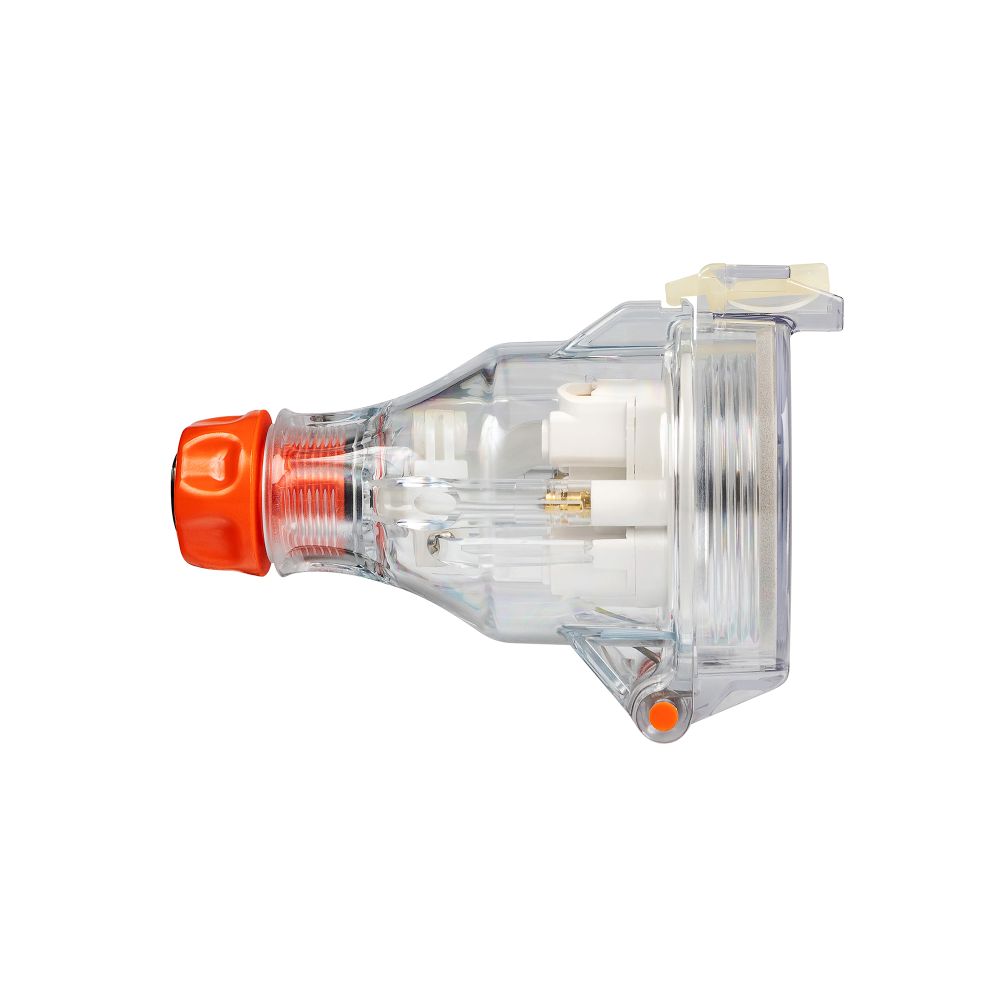

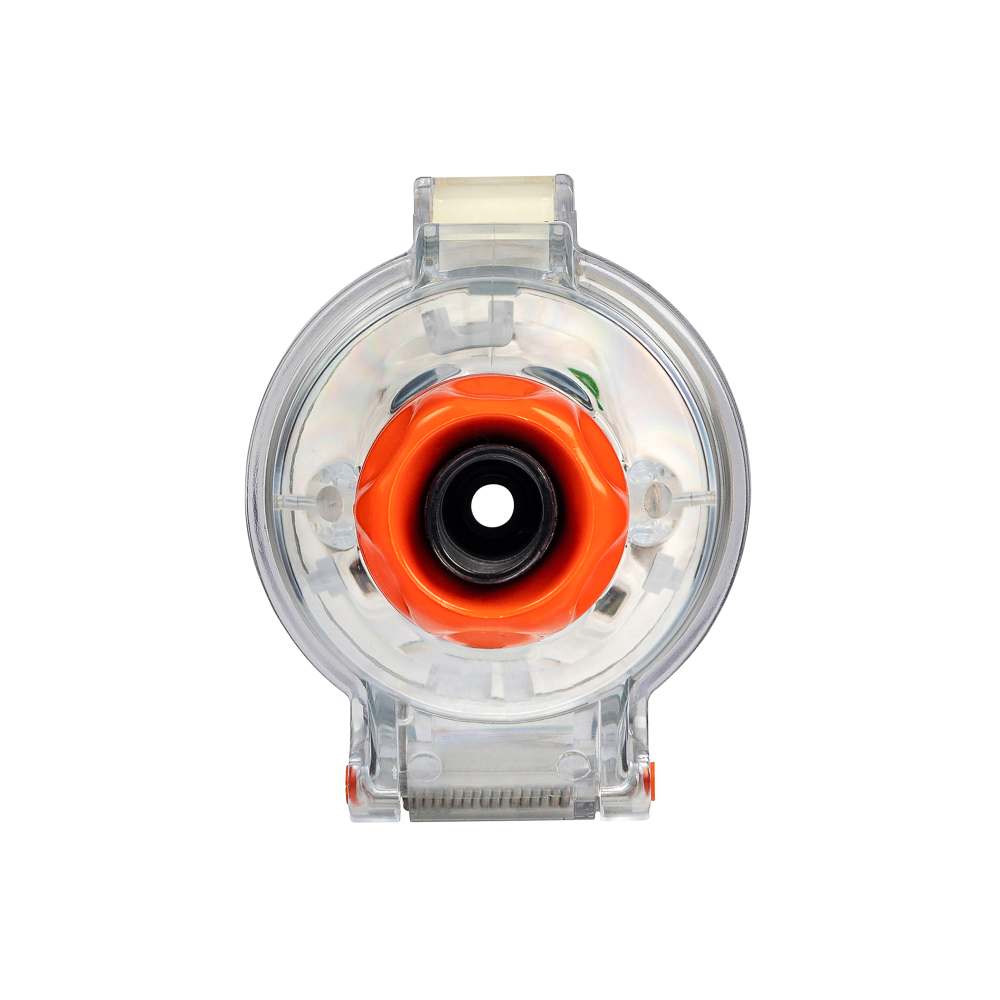

Cord Connector 3Pin 10A 250V 1Ph IP66

Product Details

PDL 56 Series Cord Extension Socket 3 Flat Pin 10A 250V 1 Phase IP66

Cord Connectors can be used with any 56 Series Plug or Appliance Inlet maintaining the IP66 protection. The body section and flap are both transparent for quick and easy identification of the socket configuration and the cable termination.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Cable entry
Gland nut
Material
Plastic
IEC-amperage
10 A
Connection system
Screwed terminal
Insert direction
Straight
Degree of protection
IP66 (Ip: IP66)
Military model
no
Identification colour
Orange / clear
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
