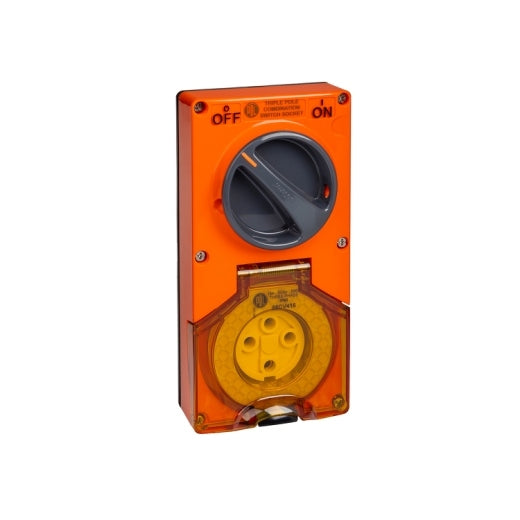

Sw Socket 4Pin 16A 500V 3Ph IP66 Orange
PDL by Schneider Electric

Sw Socket 4Pin 16A 500V 3Ph IP66 Orange

Ideal part number PDL56CV416OR Manufacturer number PDL56CV416LERO Barcode 9416175039546
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Switched Socket 4 Round Pins 16A 500V 3 Phase 2 Gang IP66 Orange

56 Series 500V Combination Switched Sockets. All 500V Switched Sockets rated 32A and above have an internal interlocking feature (plugs cannot be withdrawn or inserted when the switch is in the ON position) with this feature available on 16A and 20A units on request. The 56CV 3,4 and 5 pin units of 16A and 20A rating (except CEE17 style) have a one piece, internally wired base. This results in faster and tidier installation from having more space and less terminals to check. For keylocking products please use 56 Series switches. All are sold less enclosure (LE) as standard.

Technical specifications

Colour
Orange
Width
95 mm
Height
191 mm
Depth
60 mm
Protection
without protection
Housing material
PBT (polybutylene terephthalate)
Degree of protection
IP66 (Ip: IP66)
Military model
no
