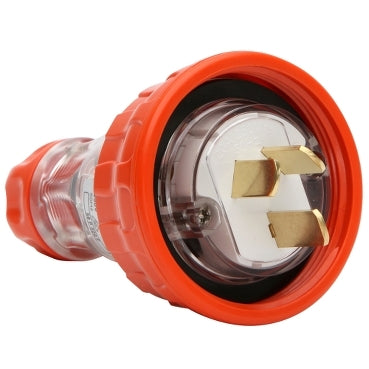

Plug 3Pin 20A 250V 1Ph IP66 Flat Pin
PDL by Schneider Electric

Plug 3Pin 20A 250V 1Ph IP66 Flat Pin

Ideal part number PDL56P320F Manufacturer number PDL56P320FOR Barcode 9416175203992
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Straight Plug Flat 3 Pin 20A 250V 1 Phase IP66 Orange

The 56 Series Single Phase plugs are available in 10A, 15A, 20A and 32A pin configurations to suit the Australian and New Zealand markets. All eight plugs are IP66 rated when in use with 56 Series IP66 sockets, combination switched sockets, and RCDs. The popular small frame sized plugs were fully redesigned and re-launched in 2003 to meet today’s market requirements. They are designed with the food industry in mind, removing significant dirt gathering areas, and with a better lock-ring for easier use. As well as this they are designed for the installer, incorporating an improved cable entry and a hinged single screw cord clamp.

Technical specifications

RAL-number
2017
Cable entry
Gland Nut
Number of poles
3
Material
Plastic
IEC-amperage
20 A
Connection system
Screwed terminal
Insert direction
Straight
Phase inverter
no
Degree of protection
IP66 (Ip: IP66)
Identification colour
Electric Orange
Voltage according to EN 60309-2
230 V (50+60) Hz) blue
