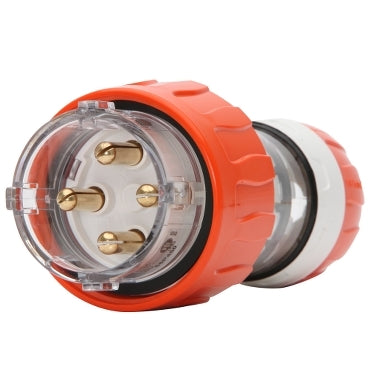

Plug 4Pin 50A 500V 3Ph IP66

Ideal Part Number PDL56P450 Manufacturer Number PDL56P450 Barcode 9416175039034

Product Details

PDL 56 Series Industrial Straight 4 Round Pin Plug 50A 500V 3 Phase IP66

These 500V plugs are all rated IP66 when fitted to a 56 Series cord connector or Socket Outlet. The body section is transparent for quick and easy inspection of the terminals and cable entry.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

RAL-number
2017
Cable entry
Gland Nut
Number of poles
4
Material
Plastic
IEC-amperage
50 A
Connection system
Screwed terminal
Insert direction
Straight
Phase inverter
no
Degree of protection
IP66 (Ip: IP66)
Identification colour
Electric Orange
Voltage according to EN 60309-2
500 V (50+60 Hz) black
