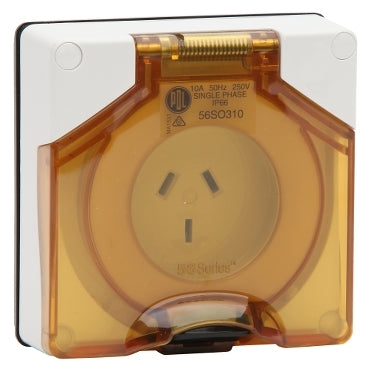

Socket 3Pin 10A 250V 1Ph IP66 White
PDL by Schneider Electric

Socket 3Pin 10A 250V 1Ph IP66 White

Ideal part number PDL56SO310WH Manufacturer number PDL56SO310LERW Barcode 9416175154843
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Socket Outlet Unswitched 3 Flat Pin 10A 250V 1 Phase IP66 less enclosure White

56 Series 110 – 250V Socket Outlets feature a transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn, forming an automatic IP66 seal. The flap is transparent so the pin configuration can be readily identified without opening. They are available in high impact grey and chemically resistant orange and white. Specify GY, RO or RW. Note: All products are sold less enclosure (LE) as standard.

Technical specifications

Model
56 Series
Material
PBT (polybutylene terephthalate)
Type of fastening
Mounting with screw
IEC-amperage
10
Connection system
Screwed terminal
Degree of protection
IP66 (Ip: IP66)
Identification colour
Resistant White
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
