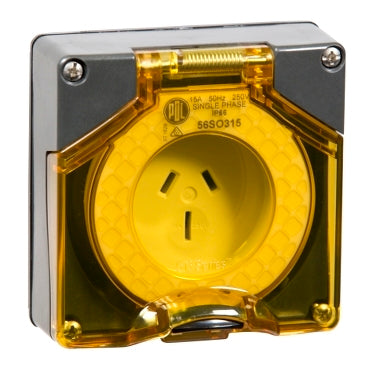

Socket 3Pin 15A 250V 1Ph IP66 Chemical Grey
PDL by Schneider Electric

Socket 3Pin 15A 250V 1Ph IP66 Chemical Grey

Ideal part number PDL56SO315CG Manufacturer number PDL56SO315LECG Barcode 9416175246999
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Socket Outlet 3 Flat Pin 15A 250V 1 Phase IP66 less enclosure Chemical Grey

56 Series 110 – 250V Socket Outlets feature a transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn, forming an automatic IP66 seal. The flap is transparent so the pin configuration can be readily identified without opening. They are available in high impact grey and chemically resistant orange and white. Specify GY, RO or RW. Note: All products are sold less enclosure (LE) as standard.

Technical specifications

Model
56 Series
Material
PC (Polycarbonate)
Type of fastening
Mounting with screw
IEC-amperage
15
Connection system
Screwed terminal
Degree of protection
IP66 (Ip: IP66)
Identification colour
Chemical Grey
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
