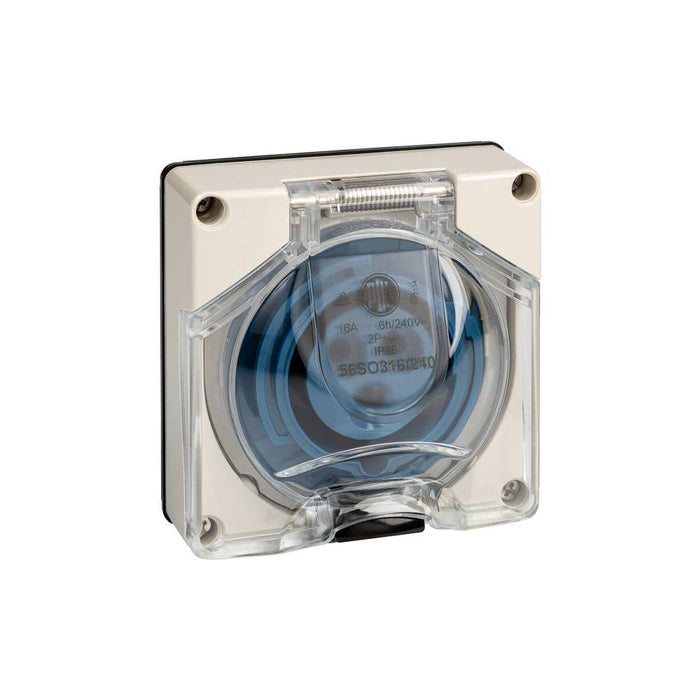

Caravan Socket 3Pin 16A 240V 1Ph IP66 Grey
PDL by Schneider Electric

Caravan Socket 3Pin 16A 240V 1Ph IP66 Grey

Ideal part number PDL56SO316240 Manufacturer number PDL56SO316240LEGY Barcode 9416175038624
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Caravan Socket, 10Amp, 250V, 1-Gang, 3-Flat Pin, Grey

56 Series 110 – 250V Socket Outlets feature a transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn, forming an automatic IP66 seal. The flap is transparent so the pin configuration can be readily identified without opening. They are available in high impact grey and chemically resistant orange and white. Specify GY, RO or RW. Note: All products are sold less enclosure (LE) as standard.

Technical specifications

Nominal current
16 A
Nominal voltage
240 V
Colour
Grey
Model
56 Series
Halogen free
no
RAL-number
7035
Material quality
PVC
Material
Plastic
Connection system
Screwed terminal
Degree of protection
IP66 (Ip: IP66)
