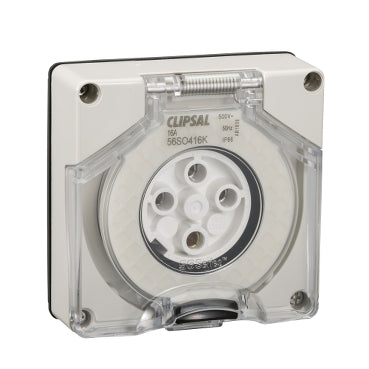

Socket Outlet KeyWAY 4Pin 16A 500V 3Ph IP66 Grey
PDL by Schneider Electric

Socket Outlet KeyWAY 4Pin 16A 500V 3Ph IP66 Grey

Ideal part number PDL56SO416K Manufacturer number PDL56SO416KLEGY Barcode 9416175040030
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Socket Outlet Keyway Unswitched 4 Round Pin 16A 500V 3 Phase IP66 Grey

56 Series 500v Socket units are supplied as a standard 100 x 100 one gang module for use with 56E1 enclosures or combining with other accessories in a larger enclosure. They are available in high impact grey and chemically resistant orange and white as standard. Note: All are sold less enclosure (LE) as standard.

Technical specifications

Model
56 Series
RAL-number
7035
Material
PC (Polycarbonate)
Type of fastening
Mounting with screw
IEC-amperage
16
Connection system
Screwed terminal
Degree of protection
IP66 (Ip: IP66)
Identification colour
Grey
Voltage according to EN 60309-2
500 V (50+60 Hz) Black
