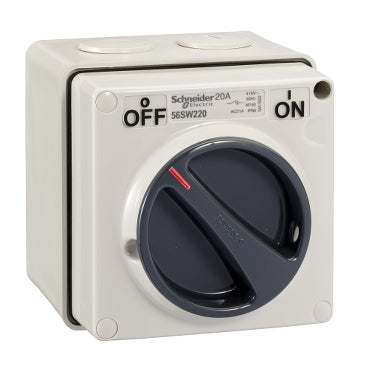

Switch 20A 2P 250V IP66 Grey

Product Details

PDL 56 Series Switch Isolation 20A 2 Pole 250V IP66 Grey

56 Series comprehensive range of 240V Switches ensures that there is always a suitable switch available for every single phase application. All are sold less enclosure (LE) as standard
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal voltage
250 V
Mounting method
Surface mounted
Assembly arrangement
Switch Less enclosure
Method of operation
Rotary
Colour
Grey
Connection type
Screw Terminal
Rated current
20 A
Material quality
Polycarbonate (PC)
Material
Plastic
Type of fastening
Screw mounting
RAL-number
7035 (Similar: 7035)
Push button switch
no
Surface finishing
Gloss
Suitable for degree of protection
IP66 (Ip: IP66)
Device width
95 mm
Device height
95 mm
Device depth
62 mm
Label space/information surface
without labelling field
Number of modules
1 (Module system: 1)
